VDF micro-hanging dynamic light and shadow shine in Macau iQiyi Scream Night

On the evening of December 6, the 2025 iQiyi Scream Night was grandly held at the Galaxy Arena in Macau. The theme of this time is 'Power up for love, scream loudly'. As an important annual ceremony in the entertainment industry, the event brings together more than a hundred artists from film and television, singers, variety shows and other fields. In the interweaving of awards and performances, a night of dazzling carnival is presented to online and offline audiences.

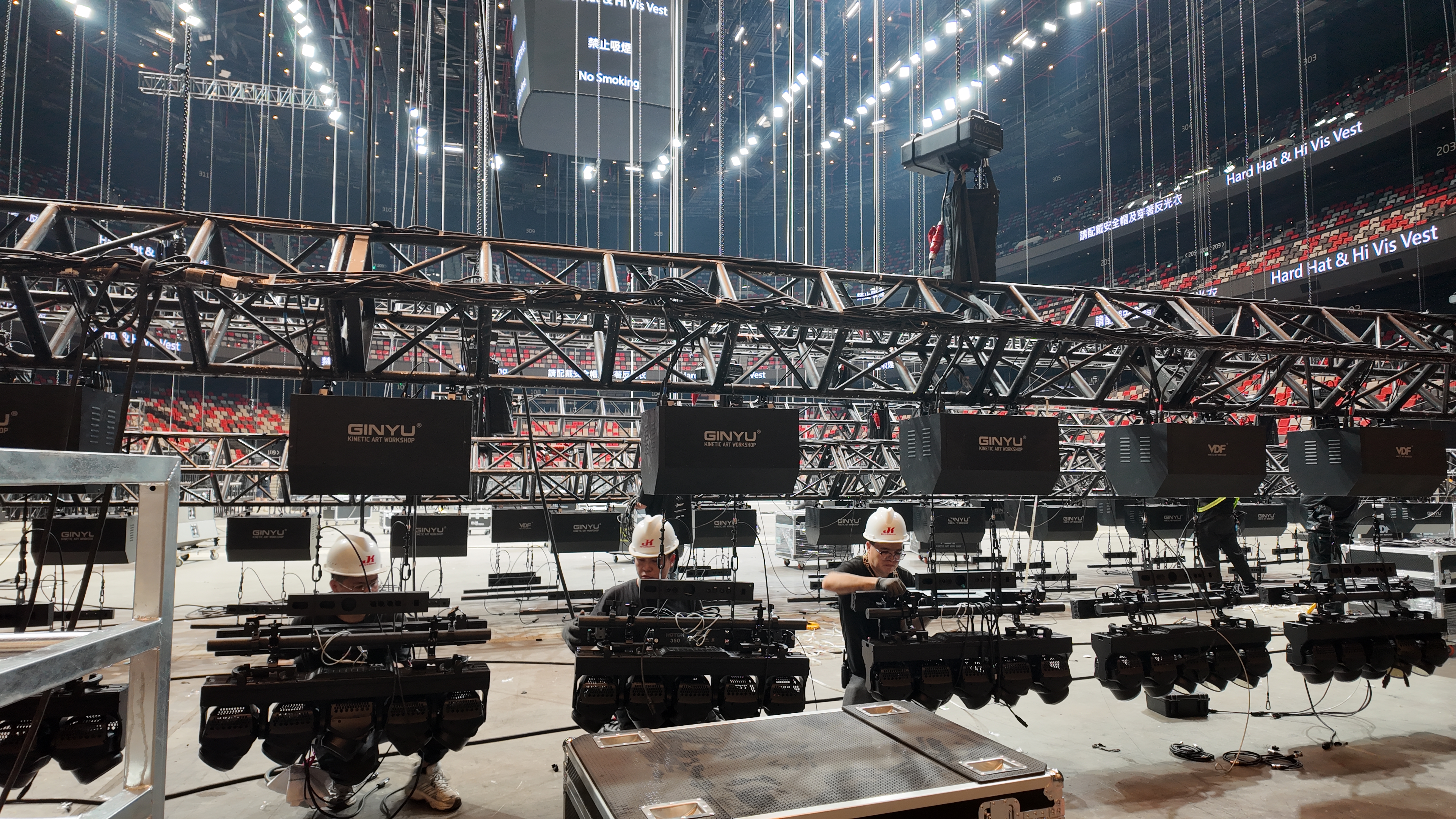

This year's stage adopts an open structure on three sides - the main stage is T-shaped and leads directly to the celebrity seats, surrounded by audience and fan support areas.

This 'T-shaped open stage structure' is different from the traditional framed stage. The T stage extends to the audience area, which not only shortens the distance between the performance and the audience, creates a stronger sense of envelopment and participation in the performance atmosphere, but also allows artists to go deeper into the audience and move more three-dimensionally.

Among the 12 groups of singer performances, Jane Zhang, as the finale singer, continued the concept of 'Suite of Love' in the 2023 Scream Night and presented the performance of 'Suite of Love 2.0'. The stage design introduced the concept of 'dynamic light and shadow matrix', which was particularly impressive - not only because of her singing, but also because the lights and micro-hangings wrote visual 'emotional lines' in the high air, allowing the emotions on the stage to be 'seen'.

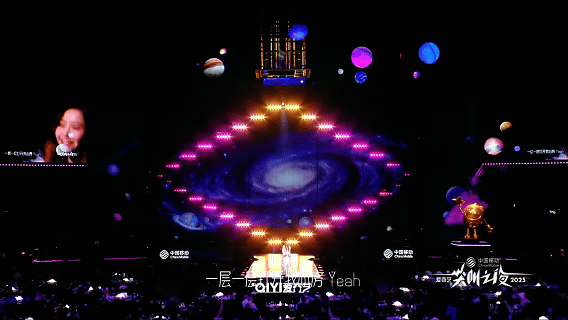

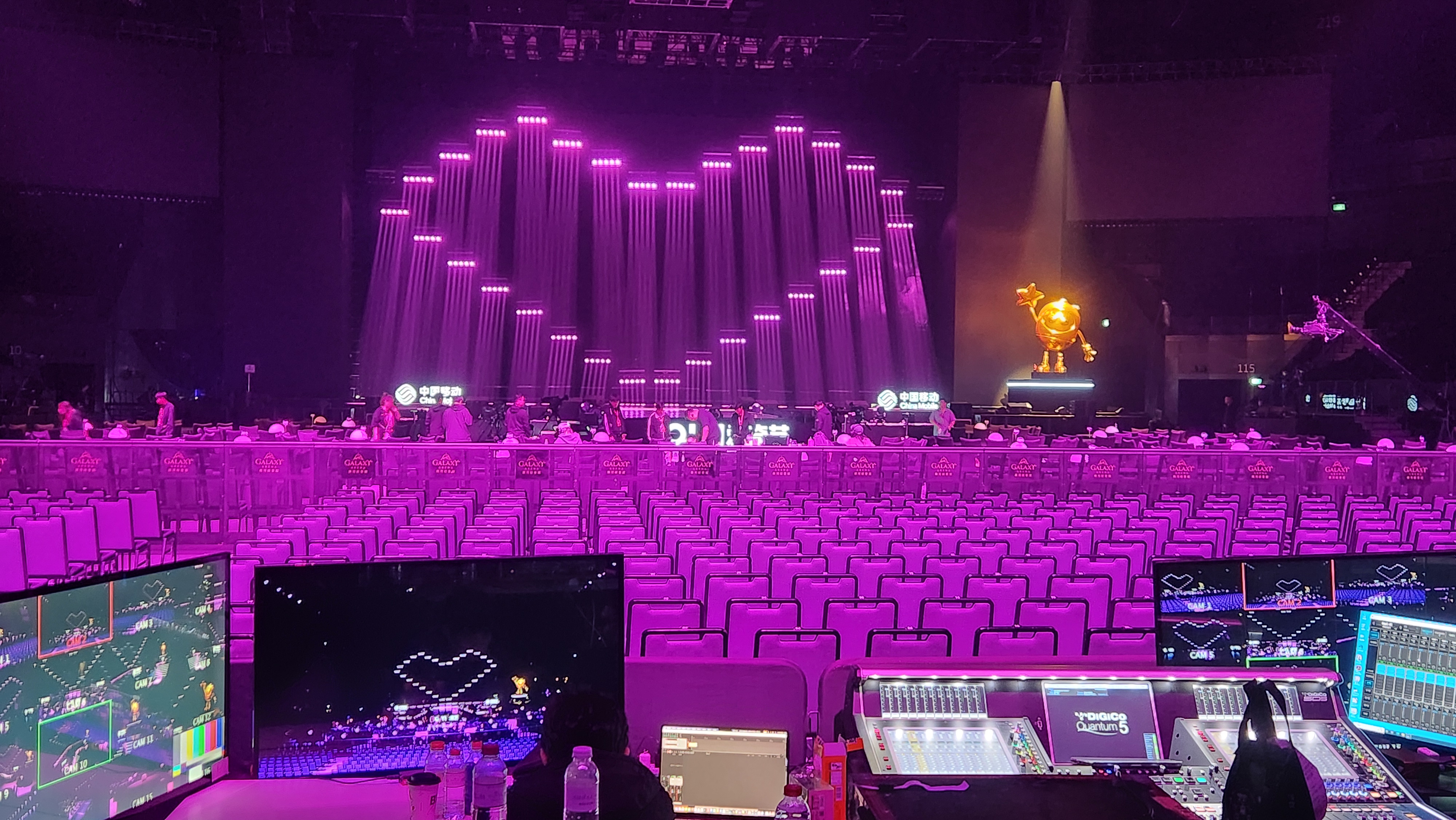

As the prelude of the song sounded, the VDF micro crane carrying ACME TB 5IP and MXL LS7460 3IP started at the same time, outlining a huge pink heart-shaped structure at high altitude. Then, various geometric shapes and motion trajectories were flexibly changed above the stage. Under the vision of planets and nebulae on the large LED screen, the heart shape seemed to be floating in the depths of the universe. All the beams were like scattered meteors, pulled to the same trajectory by the VDF micro-crane with millimeter-level accuracy, showing the shape of 'love'. At that moment, the stage seemed to have a heartbeat.

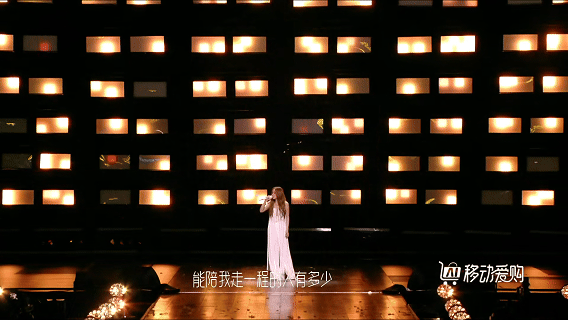

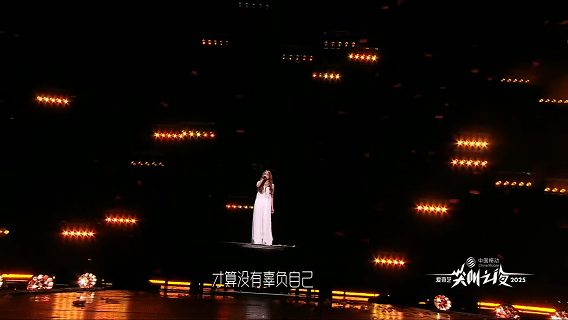

When the mood changes, the soft and warm light of the VDF micro-hanging equipped with EK SOFT LIGHT LED panel light spreads from top to bottom like a memory.

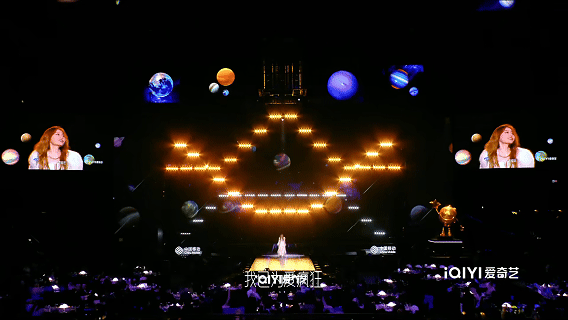

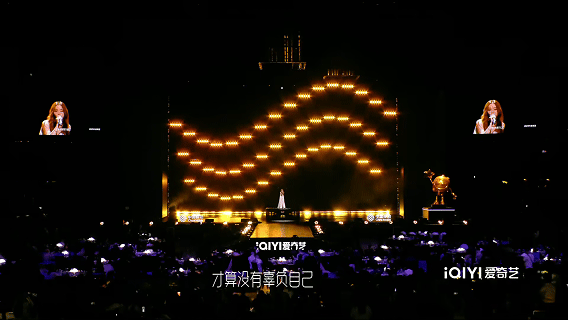

As the chorus comes, the VDF micro-hanging equipped with Acme lighting once again participates in the narrative. The lamps are rearranged to draw a flowing 'S-shaped light' in mid-air. The light beam gently bends and extends in the air, like the emotional context being amplified, and like the stage itself using light to 'tell', pushing the song's emotions to a climax.

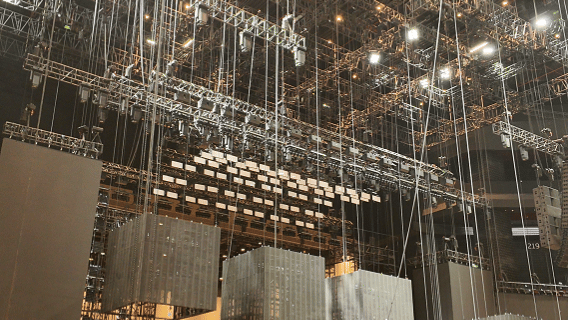

Here, the micro-suspender is no longer just a hanging device, but a key technology that allows conventional stage lighting fixtures to possess 'space switching': the space and position changes of the lighting fixture are no longer a technical action, but a part of the emotion, an implicit expressor of the stage narrative.

T30TC

Load 50KG, lifting range 1500CM

The fastest speed is 40CM/S

Control mode DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 1000W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

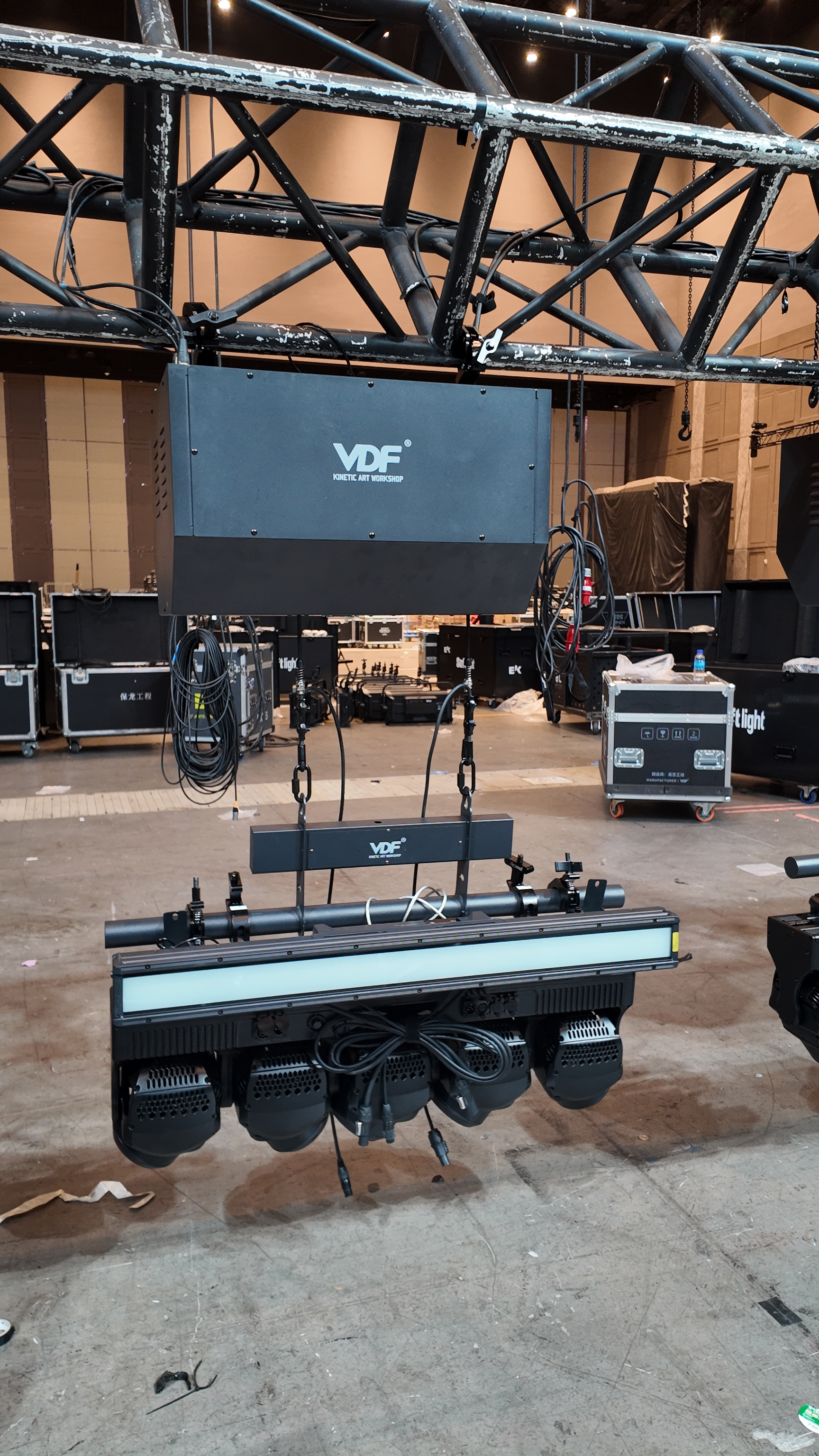

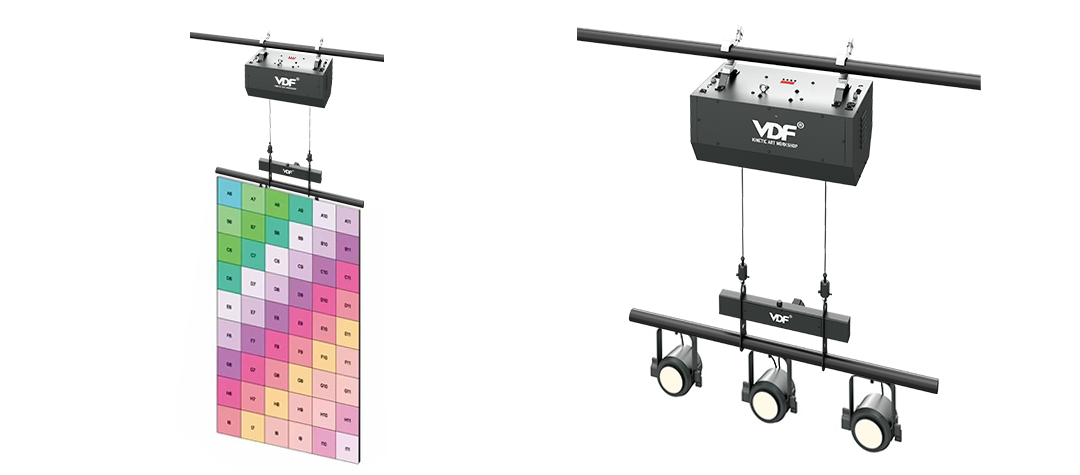

T30TC is a stage micro-suspended product independently developed by VDF. It has multiple technical patents and can carry stage lighting and LED display devices within 50 kilograms. It adopts a dual-suspended point and dual-wire structure to achieve independent transmission of power supply and control signals. One wire provides 220V power supply, and the other wire provides DMX or RJ45 signals.

The VDF micro-suspension uses the standard DMX512 control protocol and is integrated with the standard stage lighting console. The micro-suspension movement and music can be synchronized through time code, greatly improving programming efficiency.

VDF has been deeply involved in the field of stage micro-hoisting equipment for many years and has established a mature project execution system. This time it provided technical support for iQiyi Scream Night, which is an effective test of the company's technical capabilities.
