VDF Micro Diao participated in Liu Yu's 'Poet of the Universe' tour in Beijing

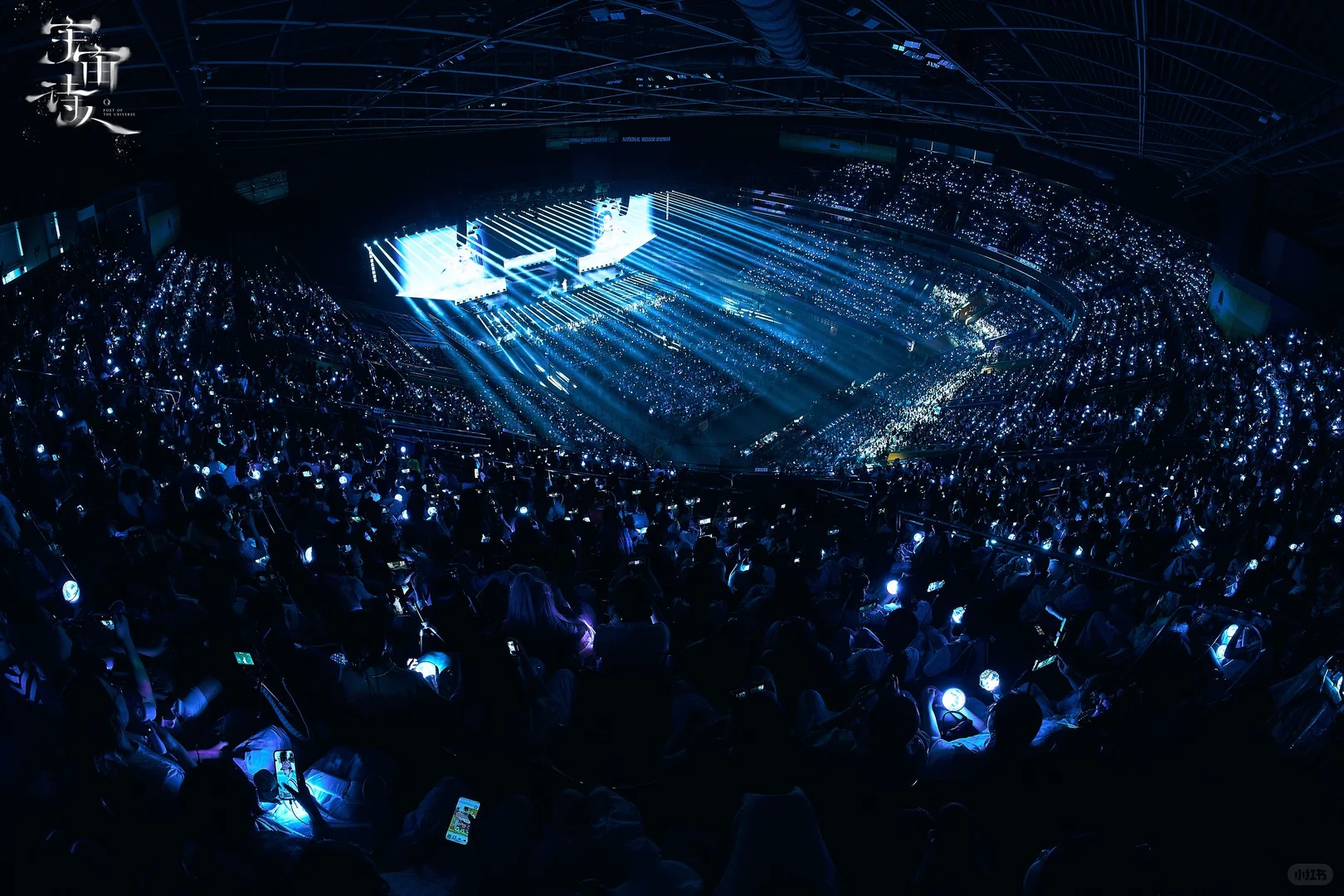

Idol singer Liu Yu's 2026 'Cosmic Poet' Tour Concert Beijing Station landed at the Beijing National Stadium for two consecutive days.

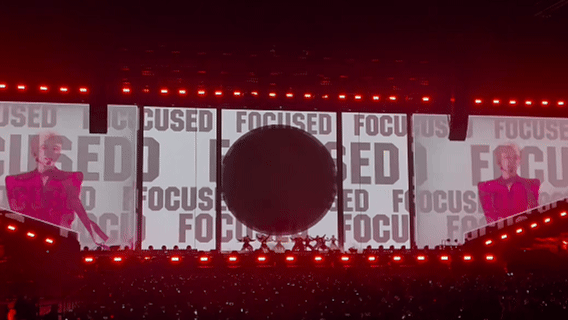

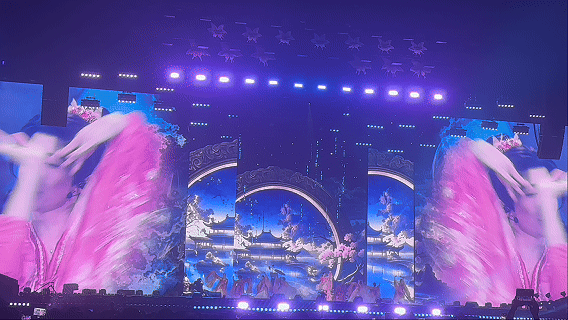

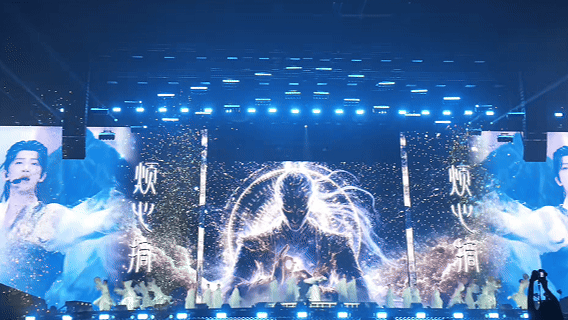

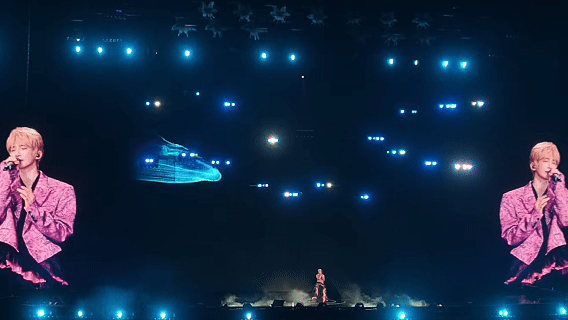

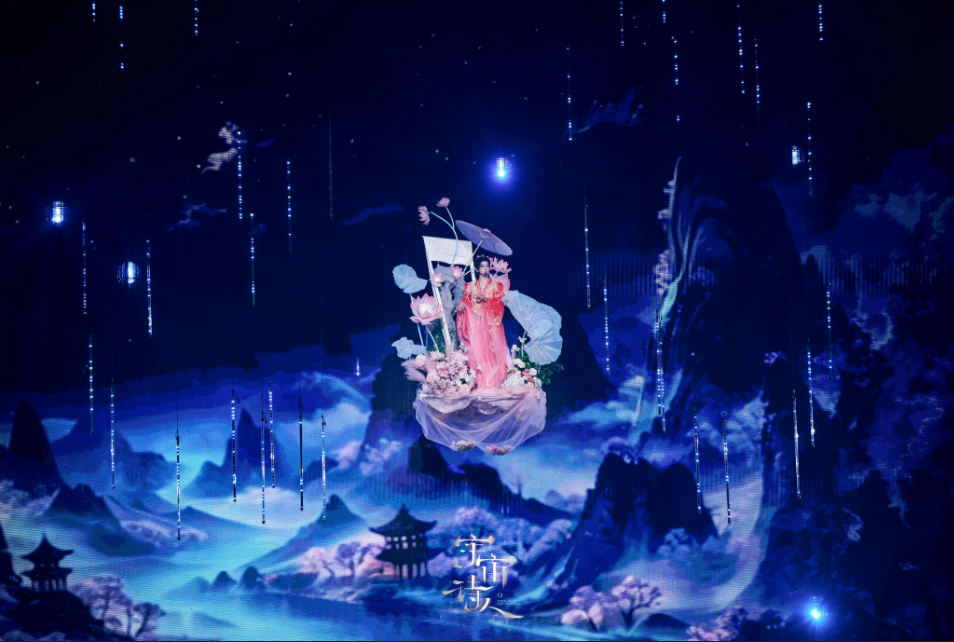

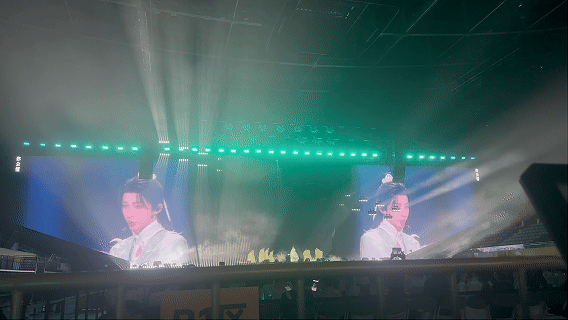

The two-day performance brought a different opening performance and costume design. The Chinese style heritage and modern stage technology blended and coexisted. The virtual and real stage beauty filled the major social platforms. The shocking visual presentation made the audience marvel at the stage lighting effects of the entire stage.

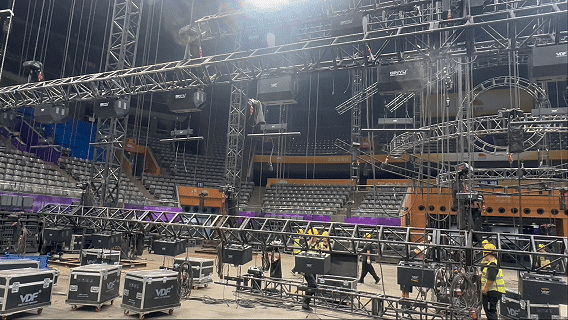

The stage hardware part of this concert was built by STAGELC GROUP, and nearly 90 VDF KINETIC Kinetic Winch micro-hangers were used in the lighting design.

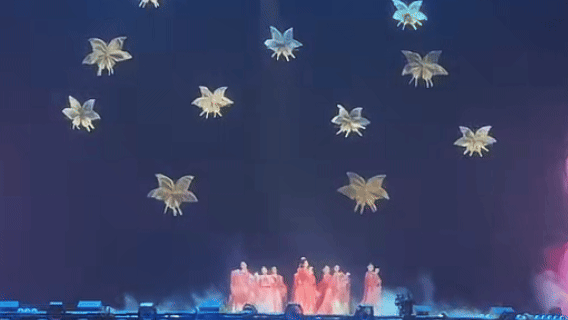

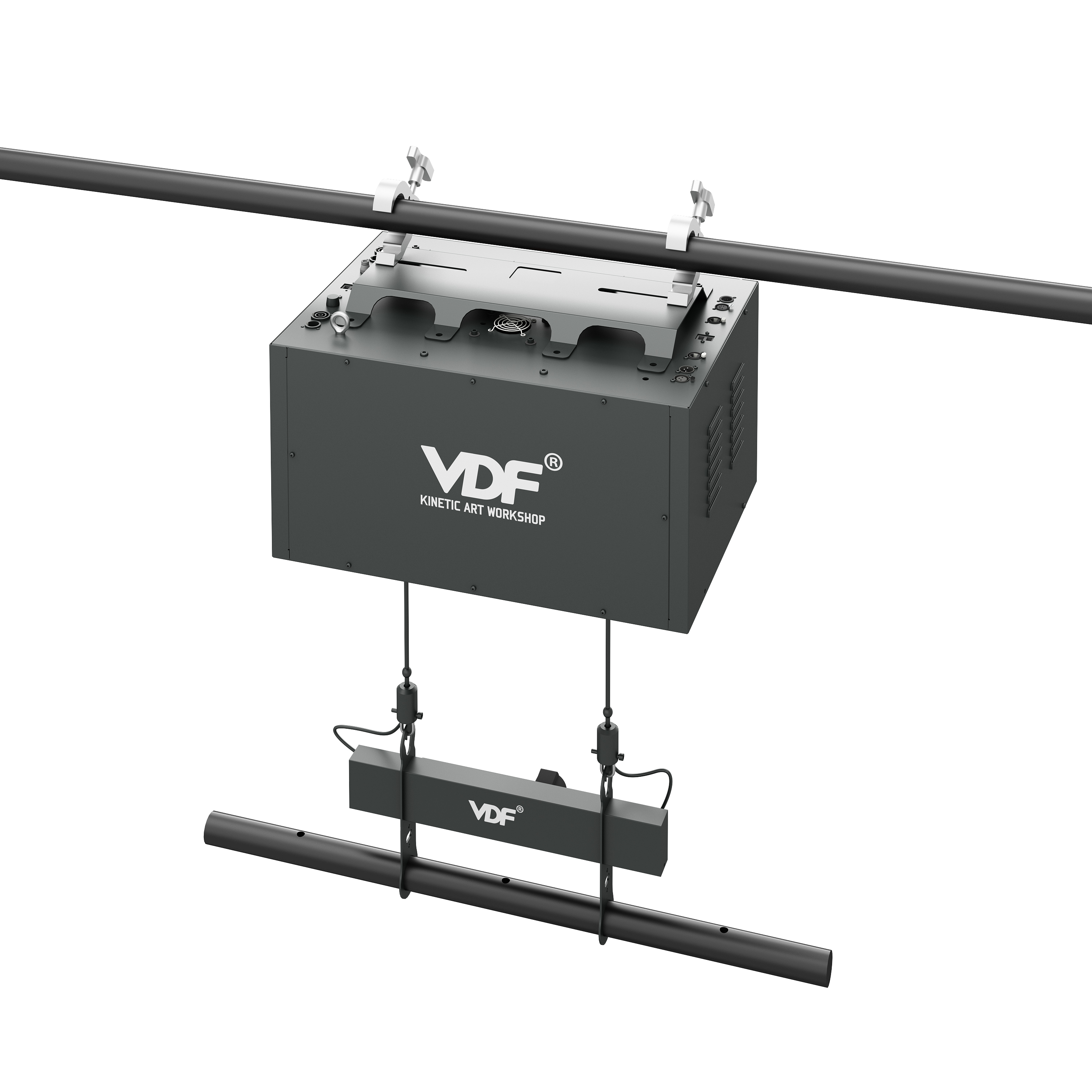

Among them, 41 sets of VDF concert star product T30TC have a stroke of 15 meters and a load of 60KG. They are hung with ACME 3IP and 5IP combination lamps and art installations. The lifting height of 15 meters perfectly meets the height requirements of large concert venues.

The detailed parameters of T30TC are as follows:

Load 60KG, lifting range 1500CM

The fastest speed is 40CM/S

Control method DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 850W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

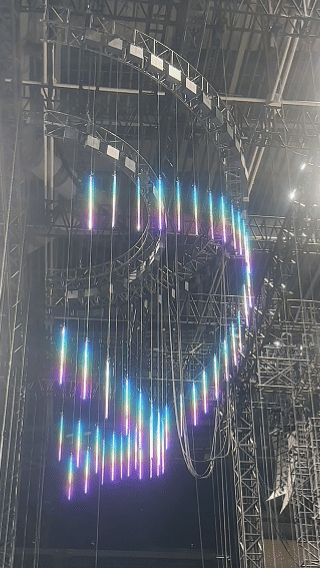

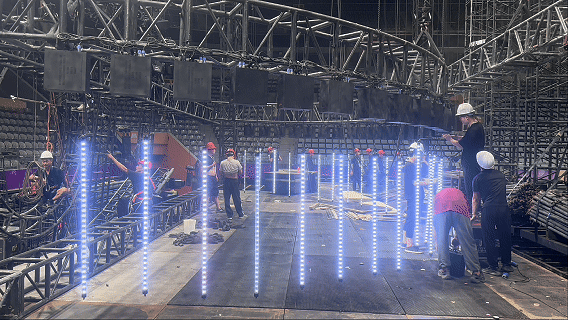

48 2KG micro-cranes were also deployed, with 2-meter pixel light tubes distributed in a ring. The entire set of dynamic lighting devices can be freely raised and lowered and reorganized according to the rhythm of the music. The lyrical passages create a tranquil artistic conception of the slowly flowing stars. The fast-paced music uses the high and low switching of the light sets and the stroboscopic effect to burst out impactful spatial light and shadow images.

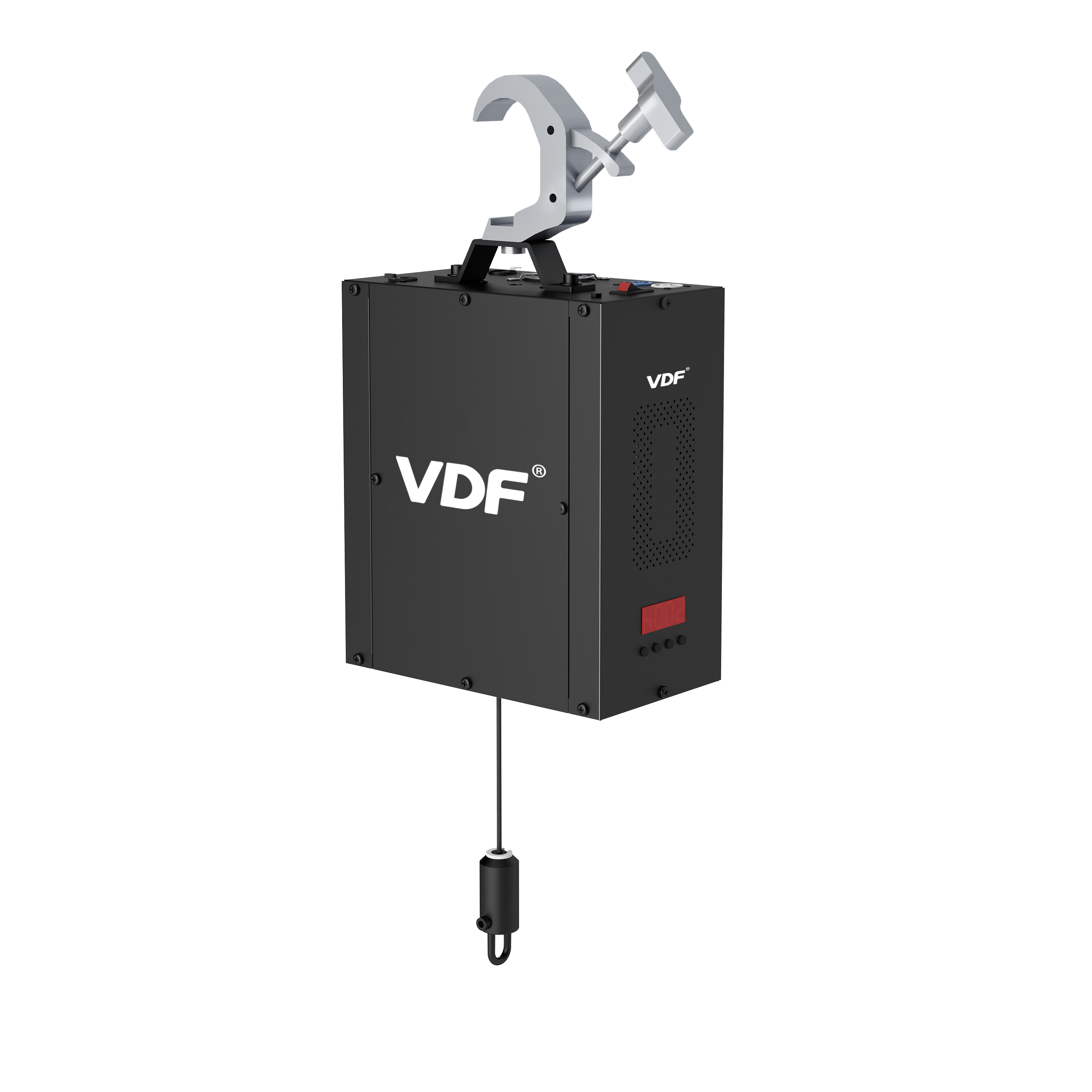

The detailed parameters of 815F are as follows:

The load is less than 2KG and the lifting range is 1000CM.

The fastest speed is 70CM/S

Control method DMX-512

Total number of channels 8CH/12CH/124CH

Control interface 3-pin XLR input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 24V_75W/RJ45/DMX

The total power is less than 75W

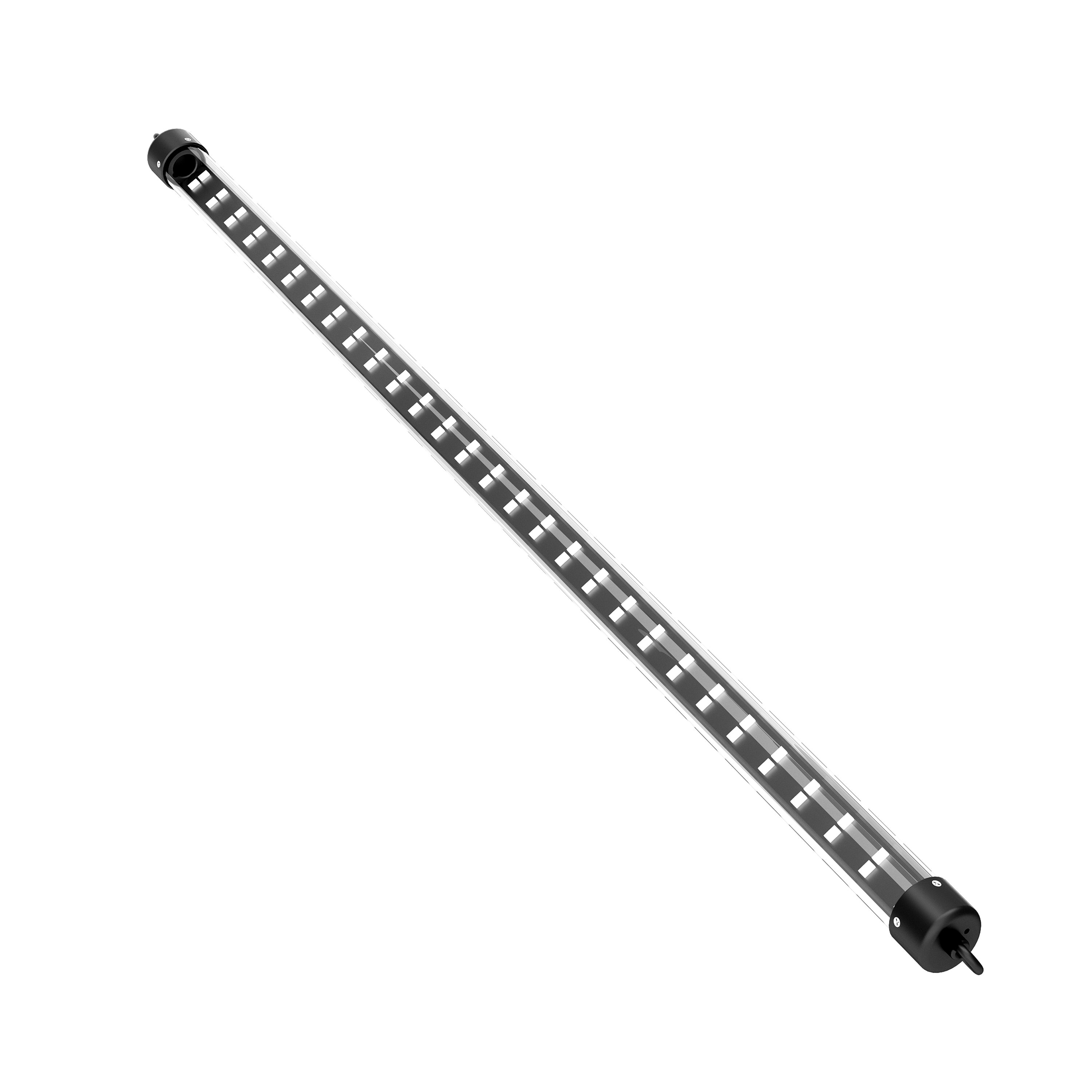

The detailed parameters of the LED pixel lamp are as follows:

Light strip size diameter 30MM/length 1200MM

Light bar weight 1.3KG

Lighting angle double-sided lighting

The number of light sources is 120 in total, 5050, 30 sets*4pcs (2pcs on each side)

Light source primary color RGB-W (6500k)

Maximum power 75W

The stars in the sky have temporarily fallen on the stage of Beijing, and the journey of dynamic light and shadow continues. Liu Yu's 'Cosmic Poet' tour continues, and we look forward to seeing you again in Hangzhou to witness a new visual feast of stage beauty!

Disclaimer: Part of the above material comes from the Internet
