VDF KINETIC micro-hanging lights up the opening and closing ceremonies of 2026 Chongqing International Animation Film Week

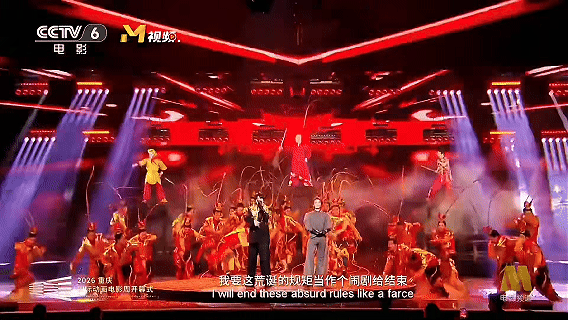

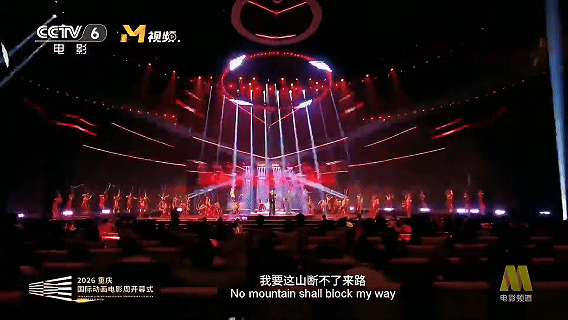

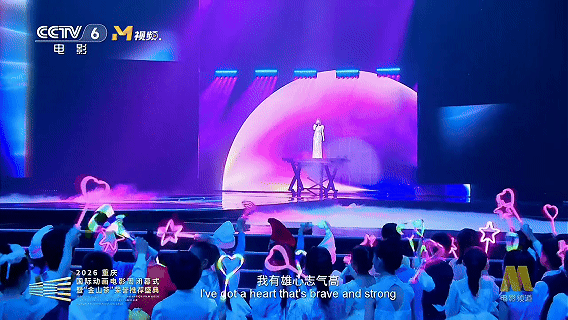

The 2026 Chongqing International Animation Film Week, with the theme of 'Intelligent Drawing Without Boundaries and All Things Competing', will kick off the opening show at the Yongchuan Science and Technology Studio Phase II on June 9, and the closing ceremony will be held simultaneously on June 13. The event brought together more than 700 original animation works at home and abroad, with more than 12,000 offline viewers, more than 270 million online topic reads, and a live broadcast peak of 380,000 online viewers, making it an annual phenomenon-level animation cultural event. The opening and closing ceremonies connect the diverse chapters of national style classics, science fiction trends, and overseas animation, relying on cutting-edge stage lifting machinery and dynamic stage lighting technology to interpret the unique charm of animation, and continue to polish Yongchuan's 'International Animation Capital' city card.

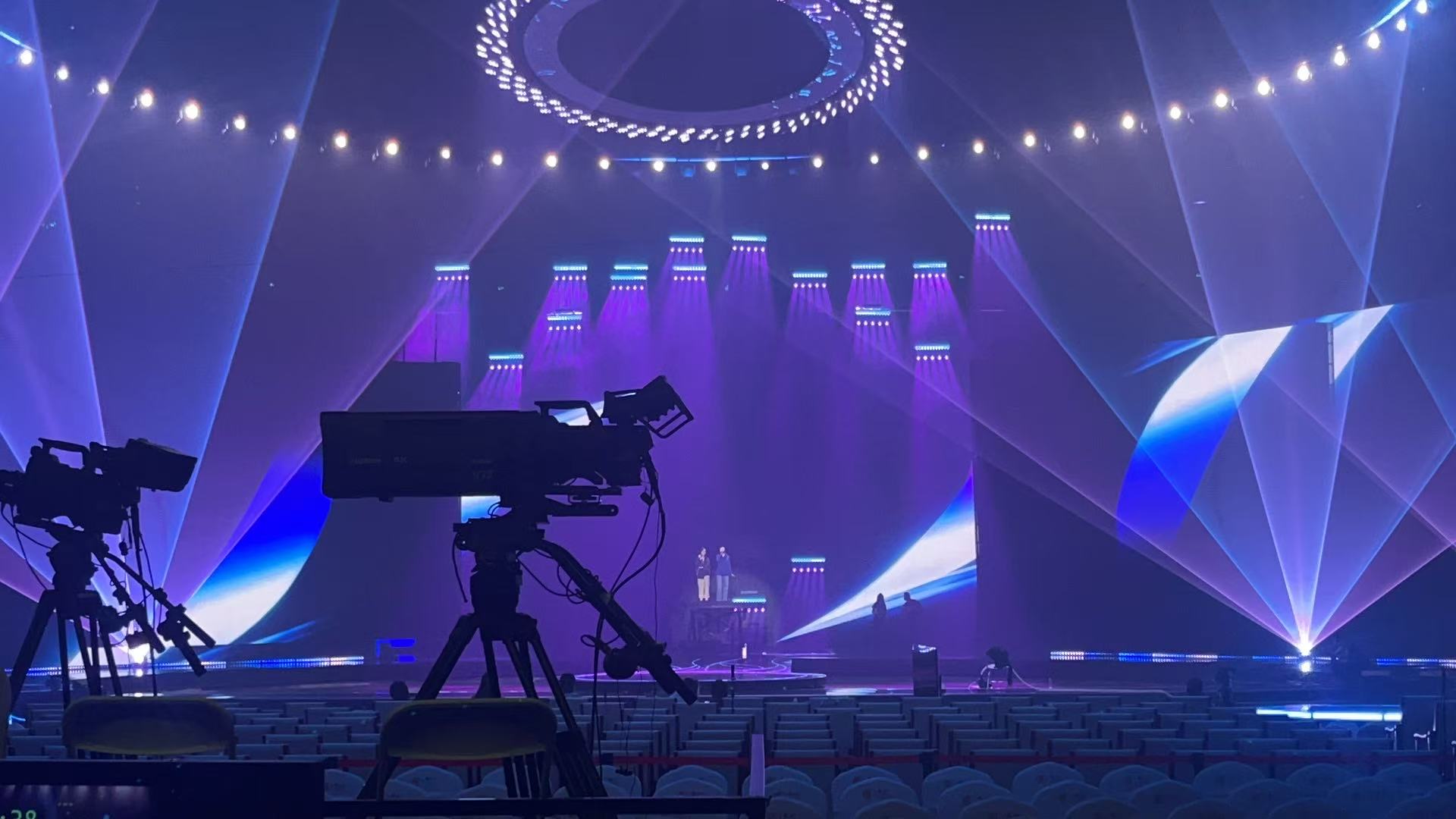

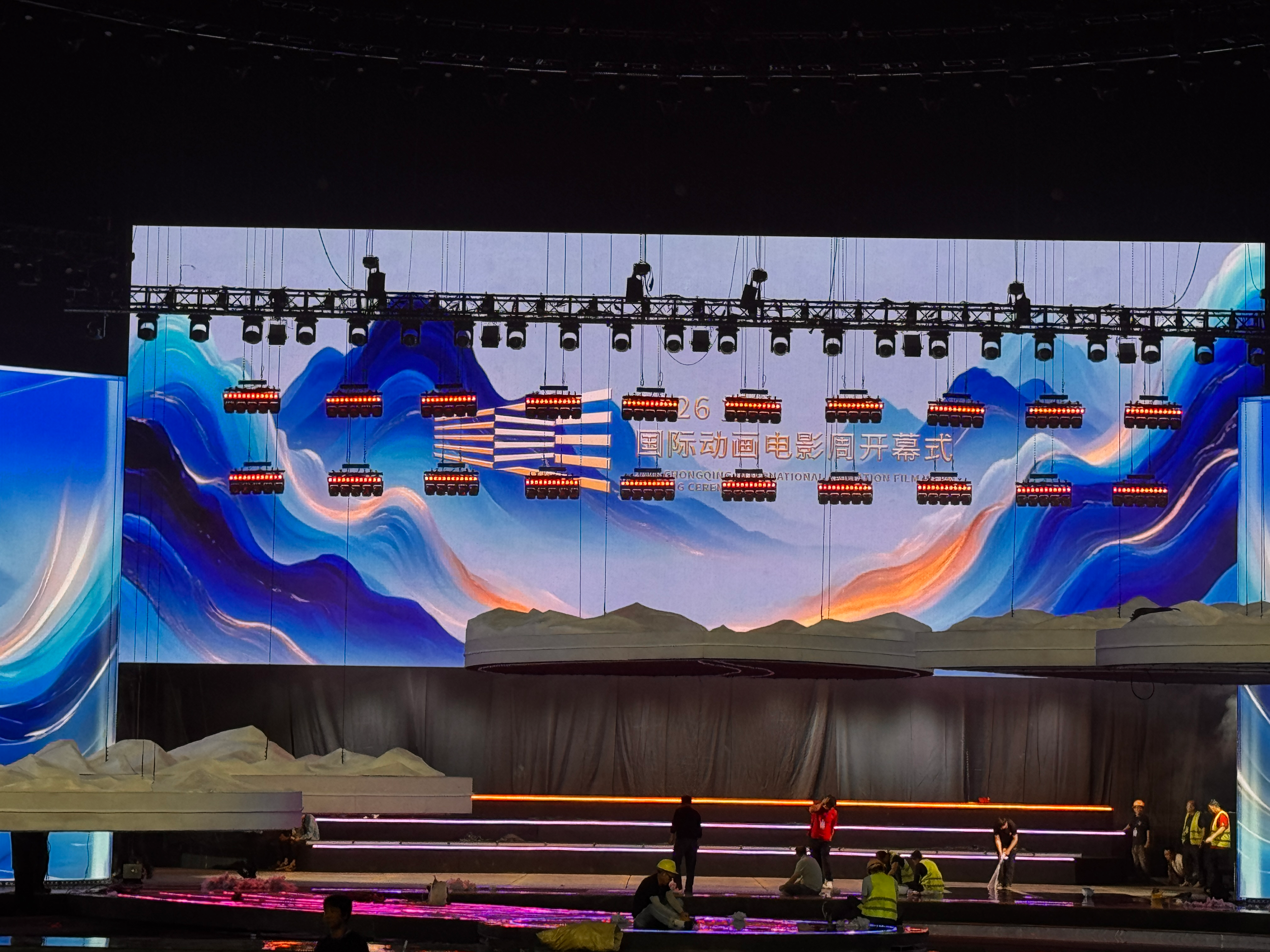

This grand event has created a super large composite immersive stage, integrating a giant animation screen, a lifting device mechanical platform, an open-air waterscape and a full set of professional light and shadow systems to build an all-round immersive audio-visual space suitable for animation narratives.

Qin Jiangyun and Bian Shenghai served as the main lighting designers, while Wang Biao, Cao Li, and Wang Helin were responsible for on-site lighting control and execution. The entire lighting program was coordinated and completed by Beijing Zhonghe Guangyao Culture Media Co., Ltd.

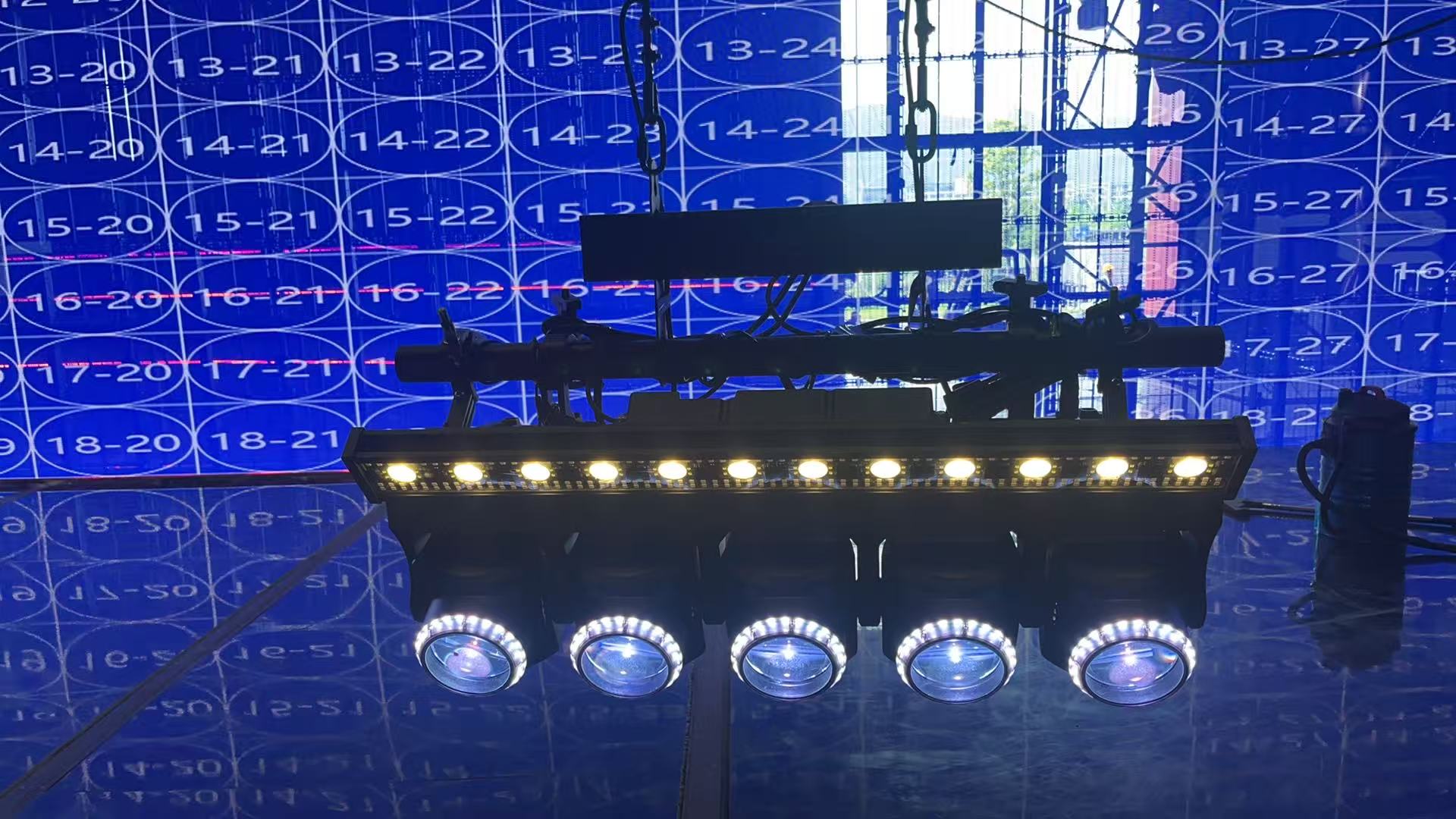

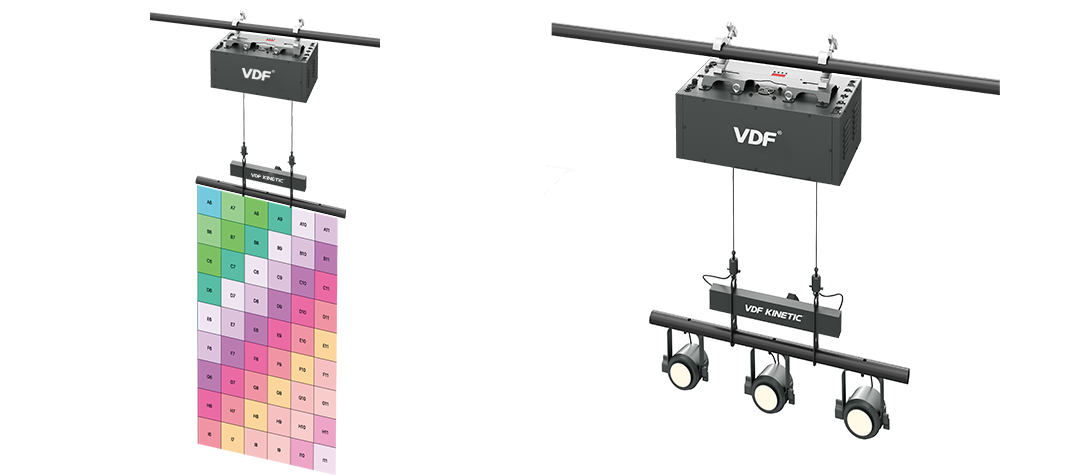

A highlight of this lighting design is the addition of VDF KINETIC micro-crane, a popular dynamic lifting element on the market. The star product of VDF KINETIC is deployed on site: VDF_T30TC, which is a 60KG micro-crane with a lifting stroke of up to 15 meters. ACME TB 5IP (TORNADO) moving head lights and STROBE 3IP are simultaneously mounted underneath each VDF micro-crane. (PIXELLINEIP) strip strobe pixel light, relying on DMX512 protocol. This mature KineticLight kinetic energy lighting solution has been widely used in various professional stage creative presentations.

T30TC

Load 60KG, lifting range 1500CM

The fastest speed is 40CM/S

Control method DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 850W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

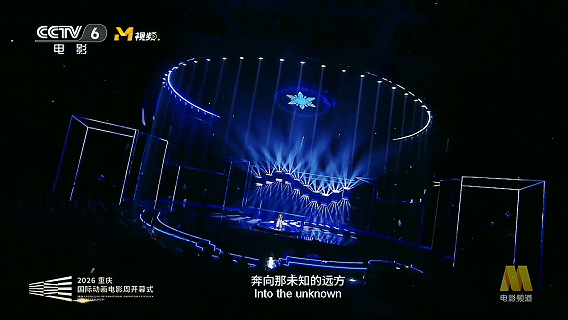

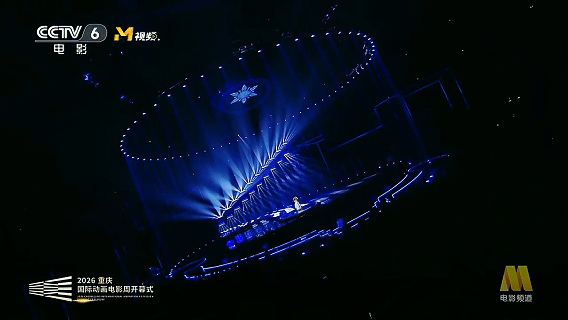

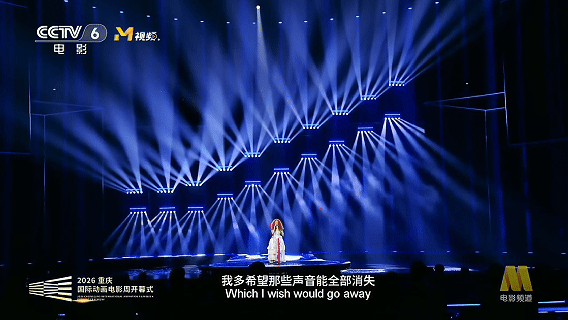

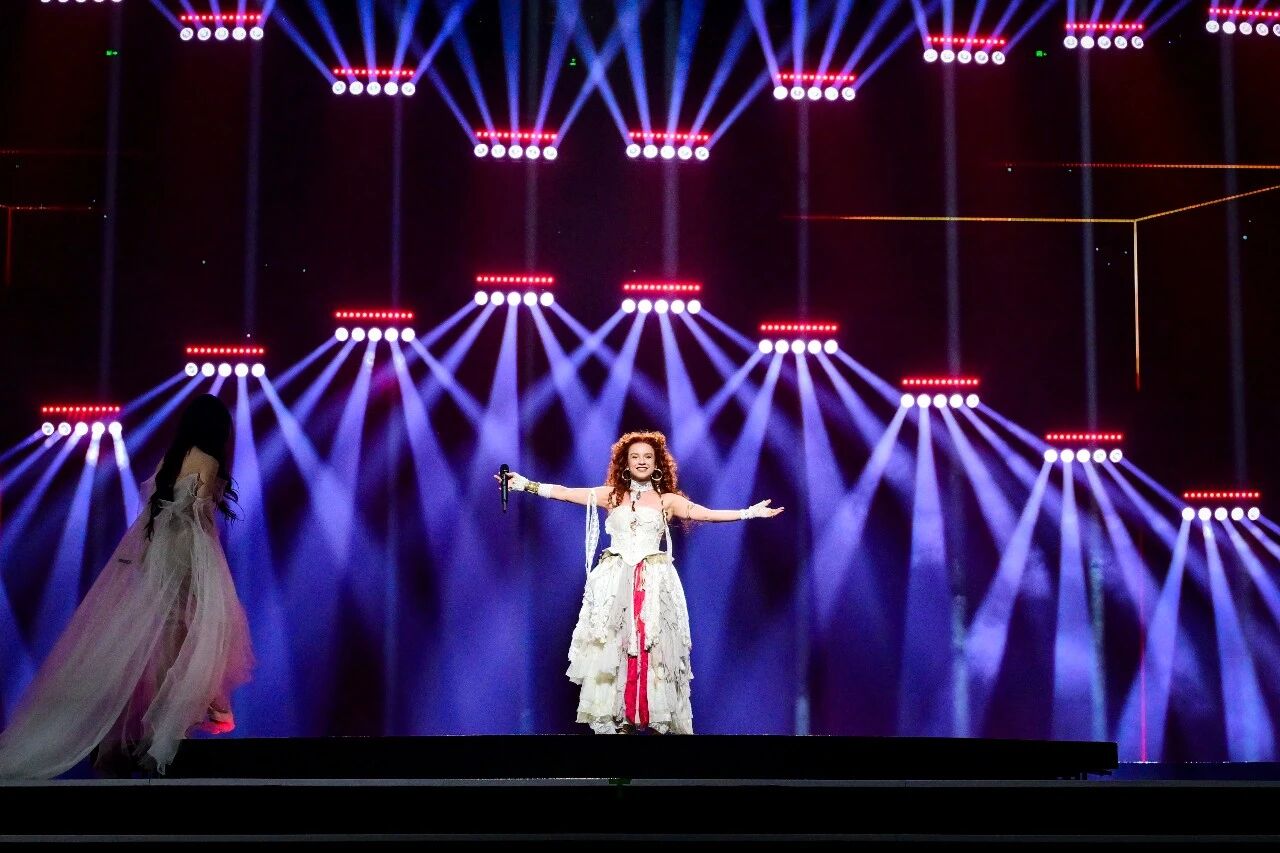

On the stage where Brazilian singers sang and danced in 'Frozen 2', VDF_T30TC drove the lamps to be arranged in a staggered manner, and clear blue-violet beams of light poured down from the sky, intertwining vertically and horizontally to form a vast dreamy light curtain. Layers upon layers build up a three-dimensional and transparent dynamic light and shadow matrix. Soft light covers the entire waterscape stage, and the light and shadow levels are long and ethereal.

The micro ceiling works in depth with professional stage lighting, using a dynamic light and shadow matrix to connect the boundary between animation imagination and the real stage. The VDF micro ceiling uses light and shadow as the medium to open up new expressions of cross-border art.

Disclaimer: Part of the above material comes from the Internet
