VDF-KINETIC dynamic strip light and shadow matrix ignites Chuzhou Jinxiu Theater

In Chuzhou, Anhui, a new cultural tourism landmark with culture as its soul and technology as its wings is quickly becoming popular - Splendid Taiping Scenic Area.

As a cultural tourism complex that integrates large-scale performing arts, immersive interaction, and theme vacations, it takes the national intangible cultural heritage 'Walking in Peace' as its cultural core and integrates cutting-edge stage technology to create a highly representative benchmark for immersive performing arts. On the first day of the Lunar New Year this year, the scenic spot was officially opened for operation, and the core performance 'Splendid Peace' premiered simultaneously. The performance is based on the main line of 'walking in peace, enjoying peace, opening up peace, and keeping peace'. Through the flow of narratives in multiple spaces, the Taiping cultural context since the Eastern Han Dynasty is put on the stage.

Ruyi Theater: Redefining the immersive viewing experience

As the core space of the entire performance, Ruyi Theater can be called the 'technological hub' of the entire project. The theater can accommodate nearly 3,000 audiences at the same time, and its biggest highlight is the complete reconstruction of the traditional viewing relationship.

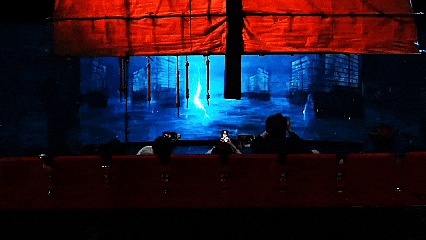

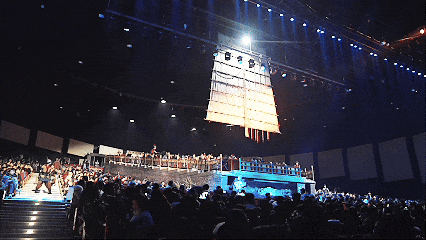

The world's first 3D 'moving giant ship' auditorium can move, rotate and even bump dynamically as the plot progresses, making the audience feel as if they are on a voyage; the nearly 1,000-square-meter holographic ice screen system constructs a visual space that spans time and space; multi-dimensional stage mechanical systems such as CNC wires, flood special effects, and water curtain carriages work together to form a truly 'mobile' stage.

VDF-KINETIC Micro-Crane: Tailor-made aerial solution for immersive stages

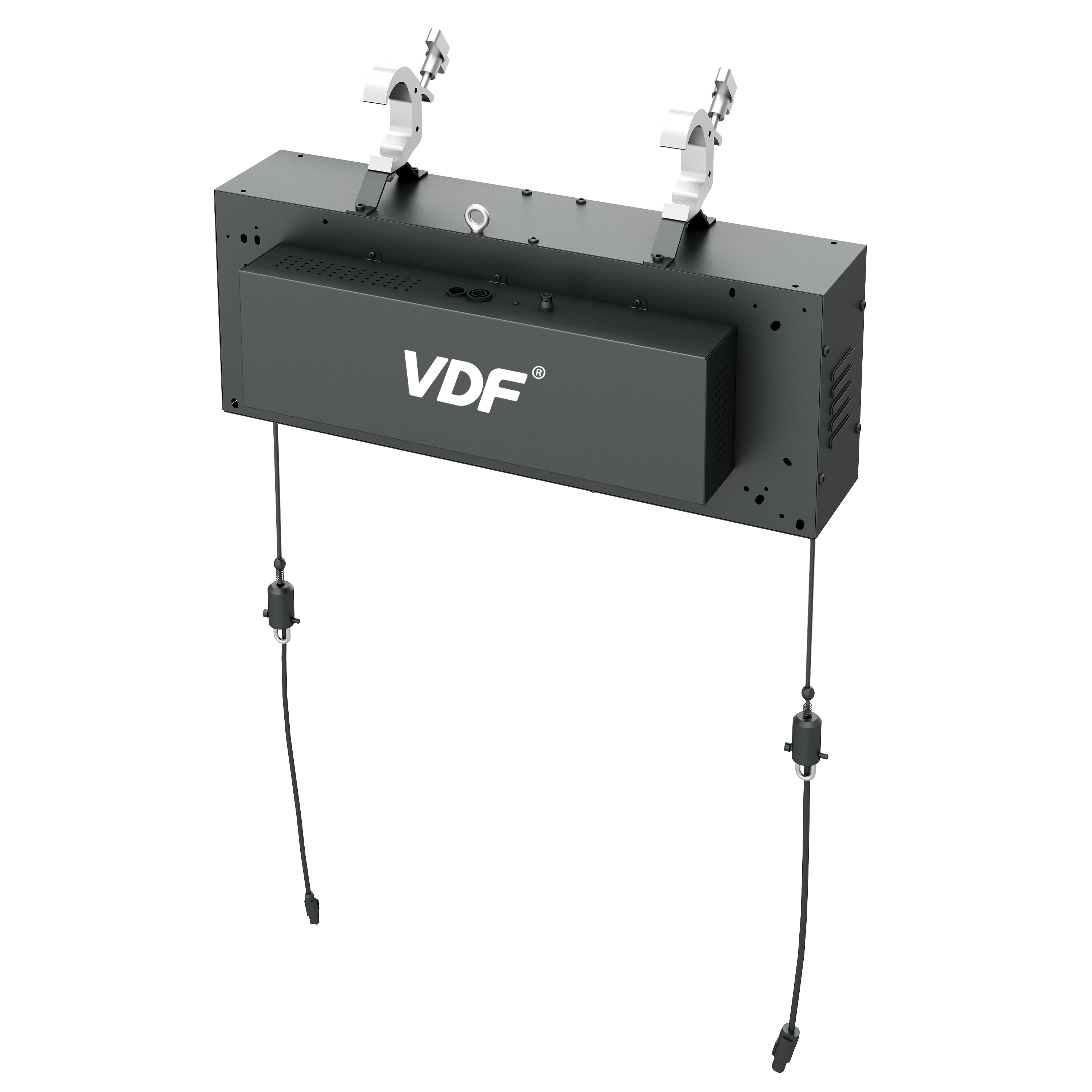

In this project, VDF-KINETIC customized and developed the exclusive model VDF-KINETIC micro-lift ET-401T based on the overall structure and performance needs of the theater.

ET-401T

Load 5KG, lifting range 1500CM

The fastest speed is 100CM/S

Control method DMX-512 Total number of channels 11CH/75CH

Control interface 3-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 24V_75W

Total power 300W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

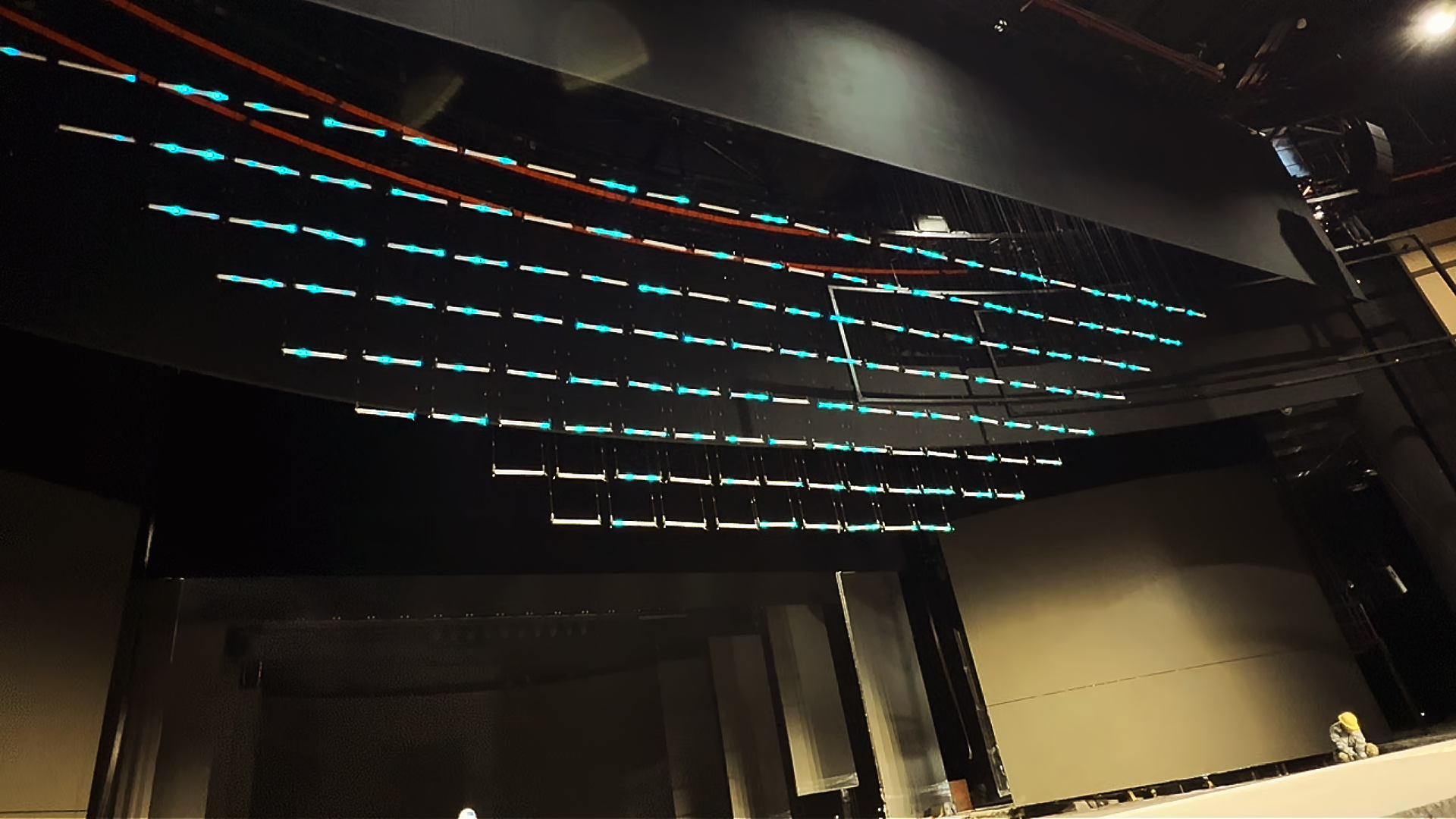

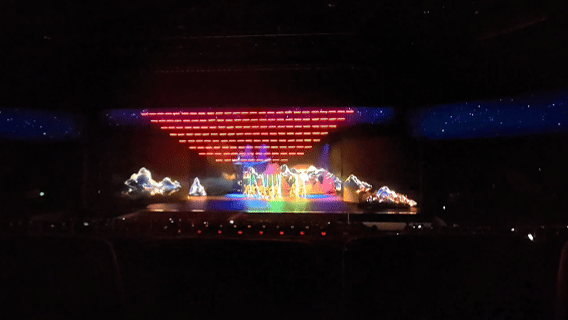

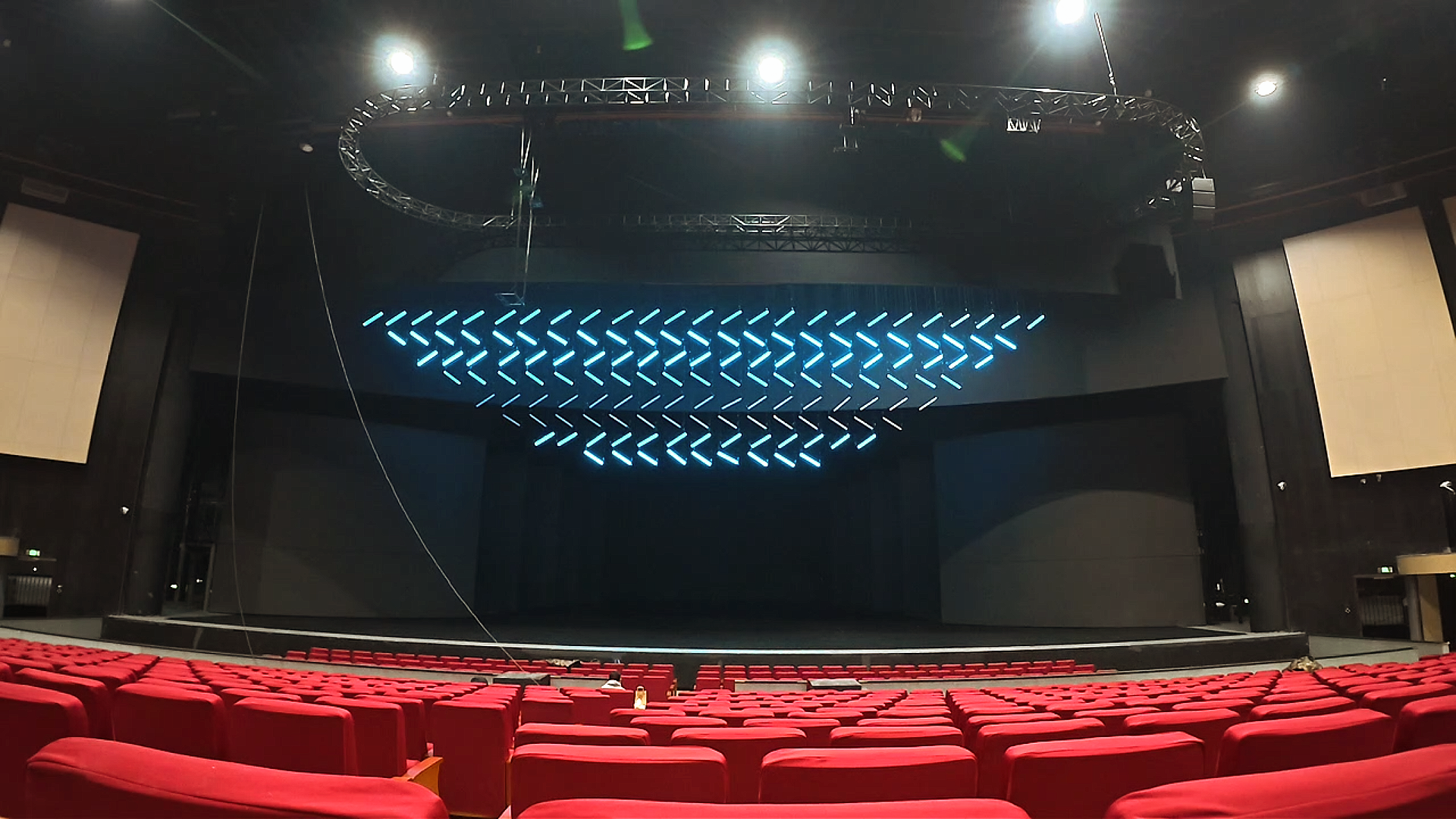

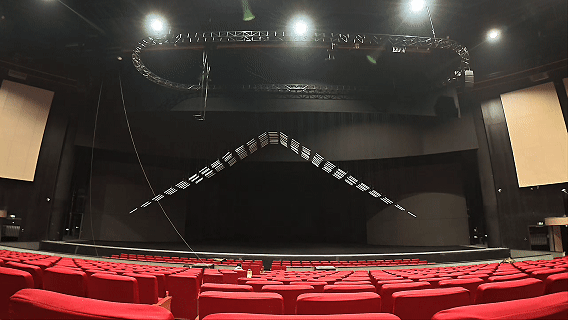

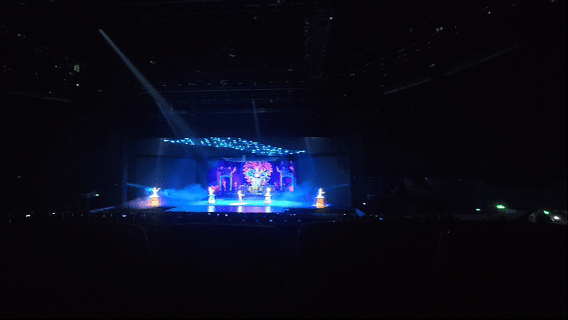

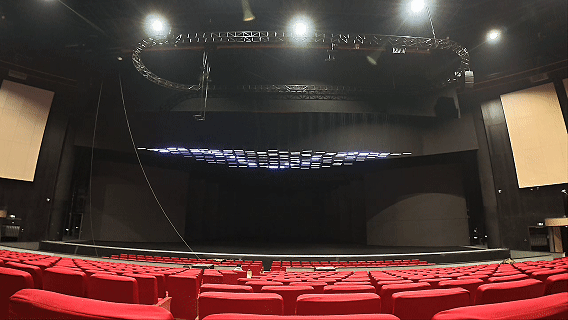

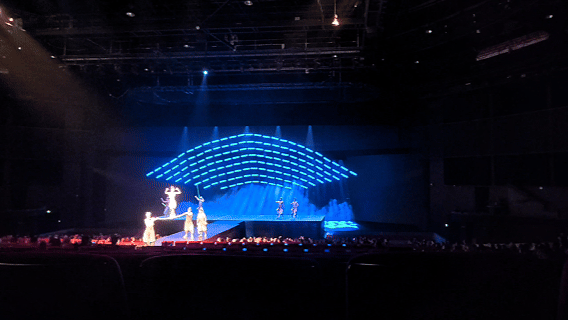

The equipment is installed in a sitting position, with a large-scale fan-shaped central symmetrical layout to complete the large-scale deployment of 142 systems. They are distributed in 8 rows in odd numbers, and the overall grouping is orderly and hierarchical. Each set of equipment is equipped with a 50CM RGBW light tube, forming a large-scale controllable light source matrix in the air. Through staggered combinations of different heights, the picture shows a clear hierarchical relationship, and the switching of light colors further enhances the sense of rhythm.

The core technical difficulty of this project lies in the extremely high requirements for the synchronous operation accuracy of 142 sets of equipment in a 15-meter-high operating environment. In order to overcome this problem, we repeatedly debugged the equipment structure and optimized the control logic, effectively solving the problems of screen deformation and movement misalignment that are prone to occur in high-altitude formations.

Not only products, but also the embodiment of customization capabilities

This support for 'Splendid Peace' is an important practice for VDF-KINETIC in the field of cultural tourism and performing arts. As the integration of culture and tourism continues to deepen, VDF-KINETIC has become an important carrier of cultural expression in immersive performing arts. VDF-KINETIC micro cranes always focus on the continuous improvement of product stability and customization capabilities, and continuously expand the application boundaries from a single device to an overall solution.

Disclaimer: Part of the above material comes from the Internet
