VDF-KINETIC Micro Hanging Lights Up QQ Music Super Peak Night

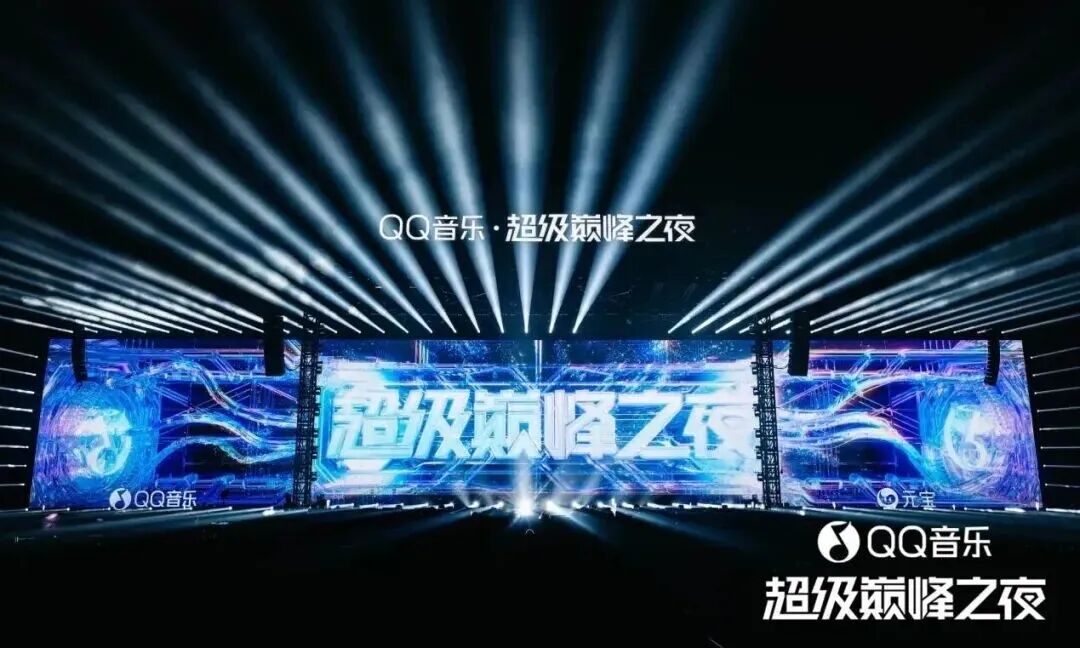

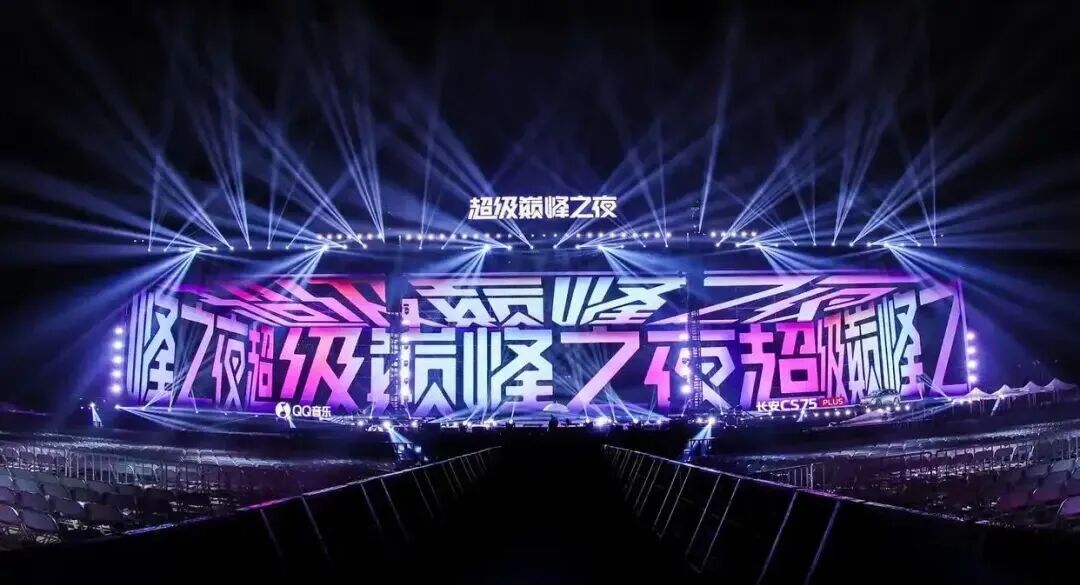

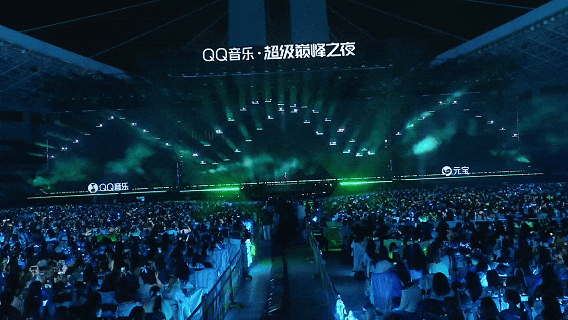

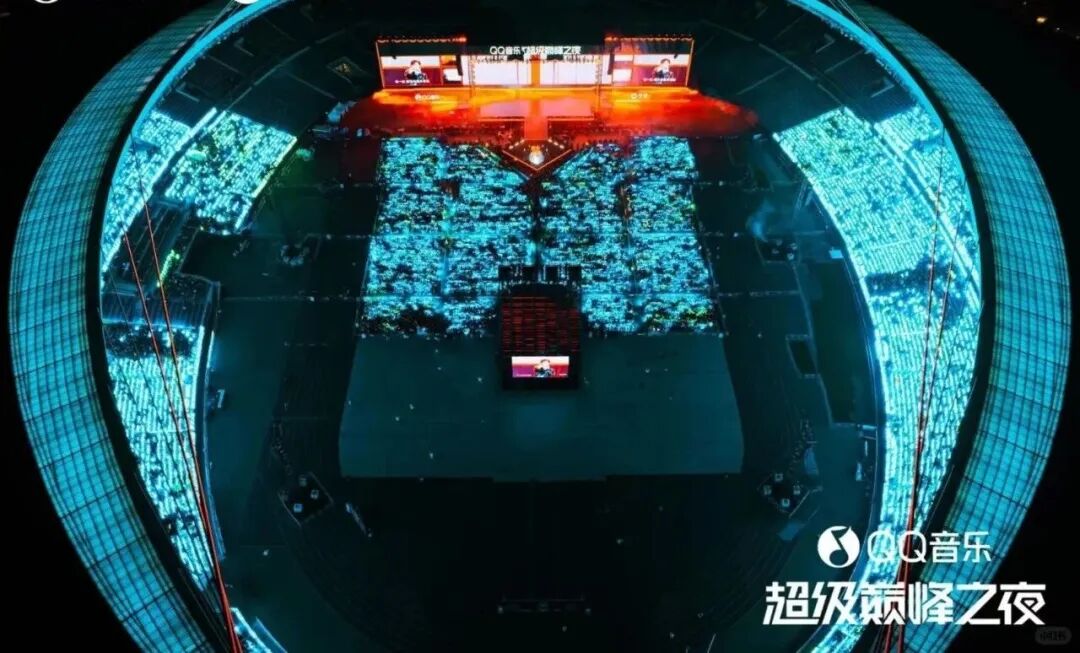

On March 28-29, 2026, the long-awaited QQ Music Super Peak Night was staged at the Huanglong Sports Center in Hangzhou.

The theme of this year's event is 'I'm happy to see the super meeting, I'm at the top'. This audio-visual feast, which is exclusive to QQ Music super members, uses the performance of 20 groups of artists and the grand announcement of 43 peak honors. It brings a successful conclusion to the two-day music carnival and has also become the focus of heated discussions among music lovers across the Internet.

The EYE Show Studios team was responsible for the lighting visual design of this event. Teachers Tian Weijun and Lu Xiaowei were the lighting design leaders. Starting from the overall space structure, they deeply integrated the lighting language with the movement of the lifting and micro-suspension devices. Construct a richly layered and highly immersive visual expression.

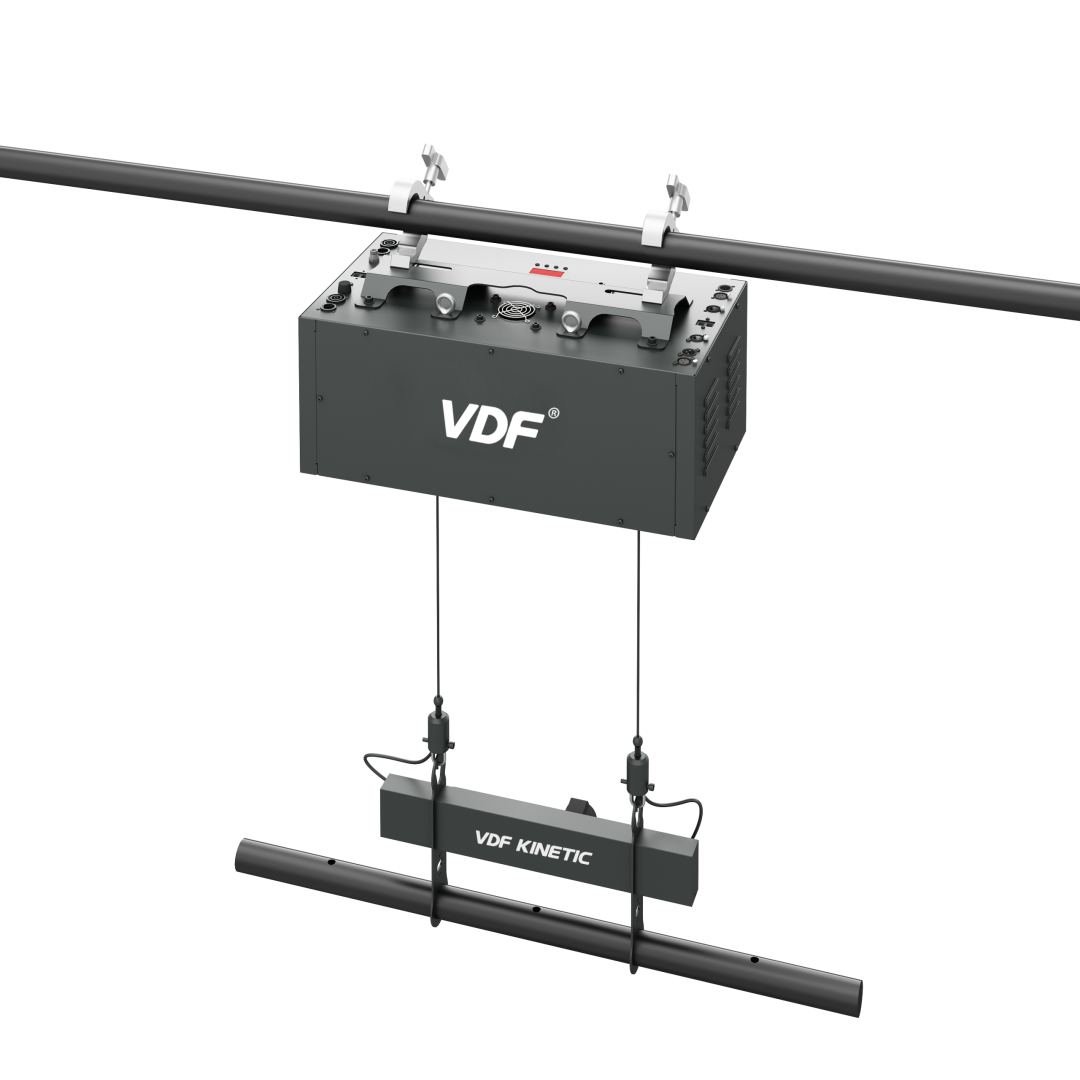

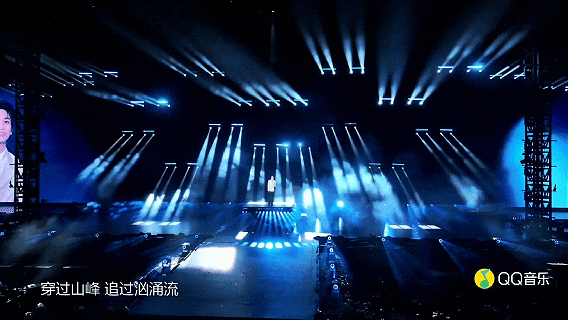

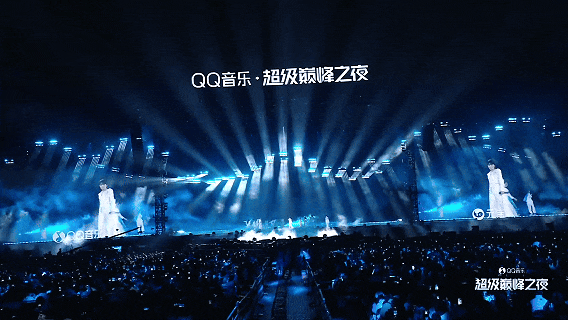

In the overall visual construction, the VDF-KINETIC micro-suspended system has become an important component. VDF-KINETIC micro-hanging T20TC (9M/50KG) and VDF-KINETIC micro-hanging T20TE (12M/80KG) are equipped with ACME's TB 5IP Tornado tornado effect light and STROBE 3IP long strobe light. TB 5IP has fast dynamic scanning and smooth movement capabilities, forming an impactful beam structure in the longitudinal space; STROBE 3IP uses linear strobe and multi-area effects to create a rhythmic light and shadow hierarchy.

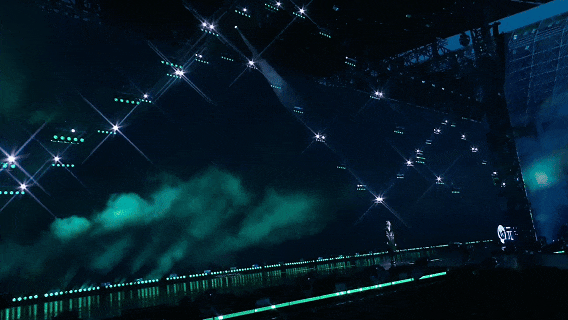

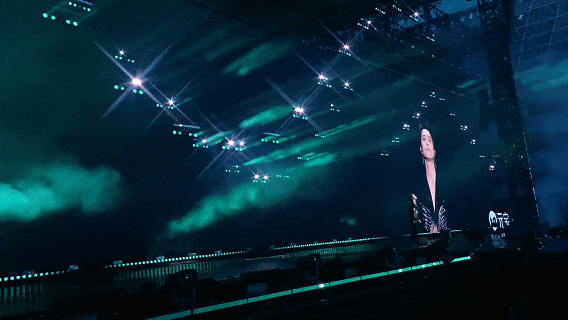

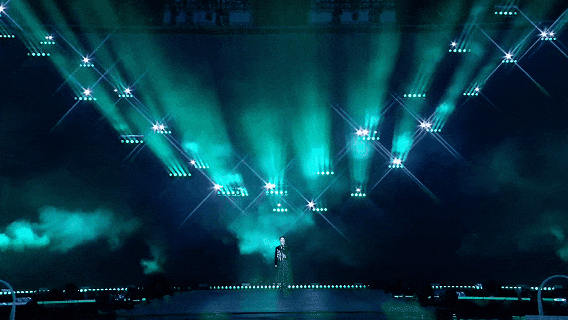

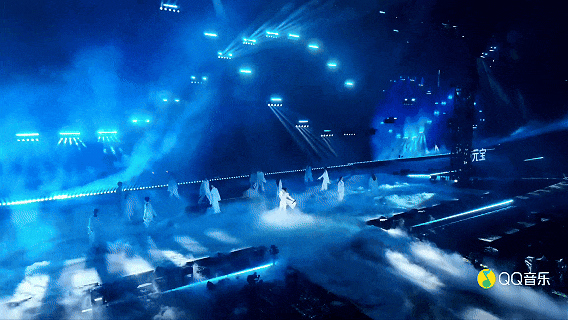

As the performance progresses, the VDF-KINETIC micro-suspended system continuously changes the height and arrangement of the lamps, allowing the beams to stagger and extend in different spatial dimensions. Lighting is no longer just 'illumination', but forms a dynamic visual language through lifting, expansion and contraction, further strengthening the expression of music emotions and enhancing the audience's immersive experience.

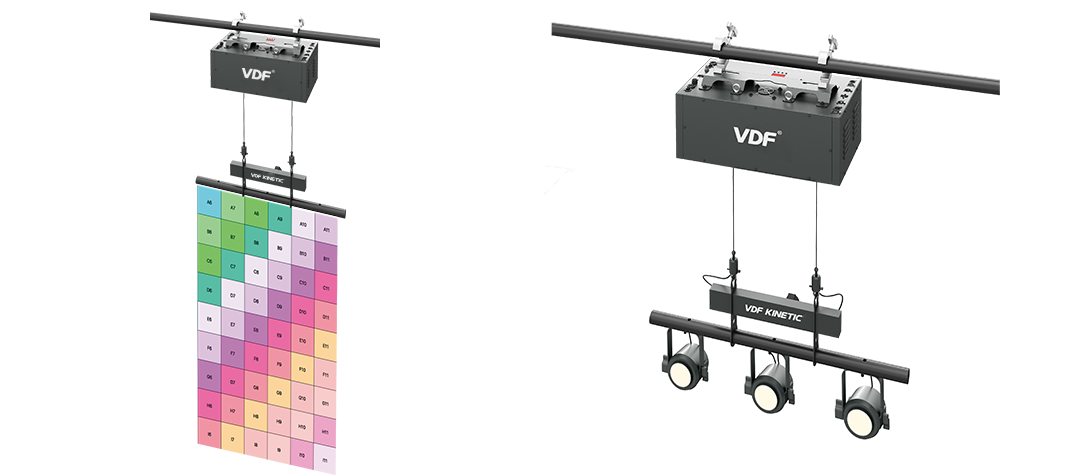

In terms of system design, the VDF-KINETIC micro crane can carry lamps and LED displays up to 120KG. It adopts a double hanging point and double wire structure to transmit 220V power all the way and DMX/RJ45 control signals all the way. The power supply and signals do not interfere with each other, ensuring the stable operation of the entire kinetic energy device system.

Through the standard DMX512 control protocol, the VDF-KINETIC micro-ceiling can be controlled in conjunction with the lighting console, and supports time code triggering and music synchronization, so that lighting changes and lifting movements form a unified dynamic expression. As the demand for spatial expression in large-scale performances continues to increase, VDF-KINETIC micro-suspension is becoming an important part of the visual system.

T20TC

Load 50KG, lifting range 900CM

The fastest speed is 40CM/S

Control method DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 1000W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

T20TE

Load 80KG, lifting range 1200CM

The fastest speed is 40CM/S

Control method DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC180V-240V/50-60HZ

Output mode 220V_4000W/RJ45/DMX

Total power 1000W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

Although the 2026 QQ Music Super Peak Night has come to an end, the kinetic energy expression and spatial innovation presented by the VDF-KINETIC micro-suspension still provide new ideas for the industry. In the future, VDF-KINETIC micro-suspension will continue to explore the integration and application of lighting and mechanical systems, giving every performance richer visual possibilities.

Disclaimer: Part of the above material comes from the Internet
