| General | |||

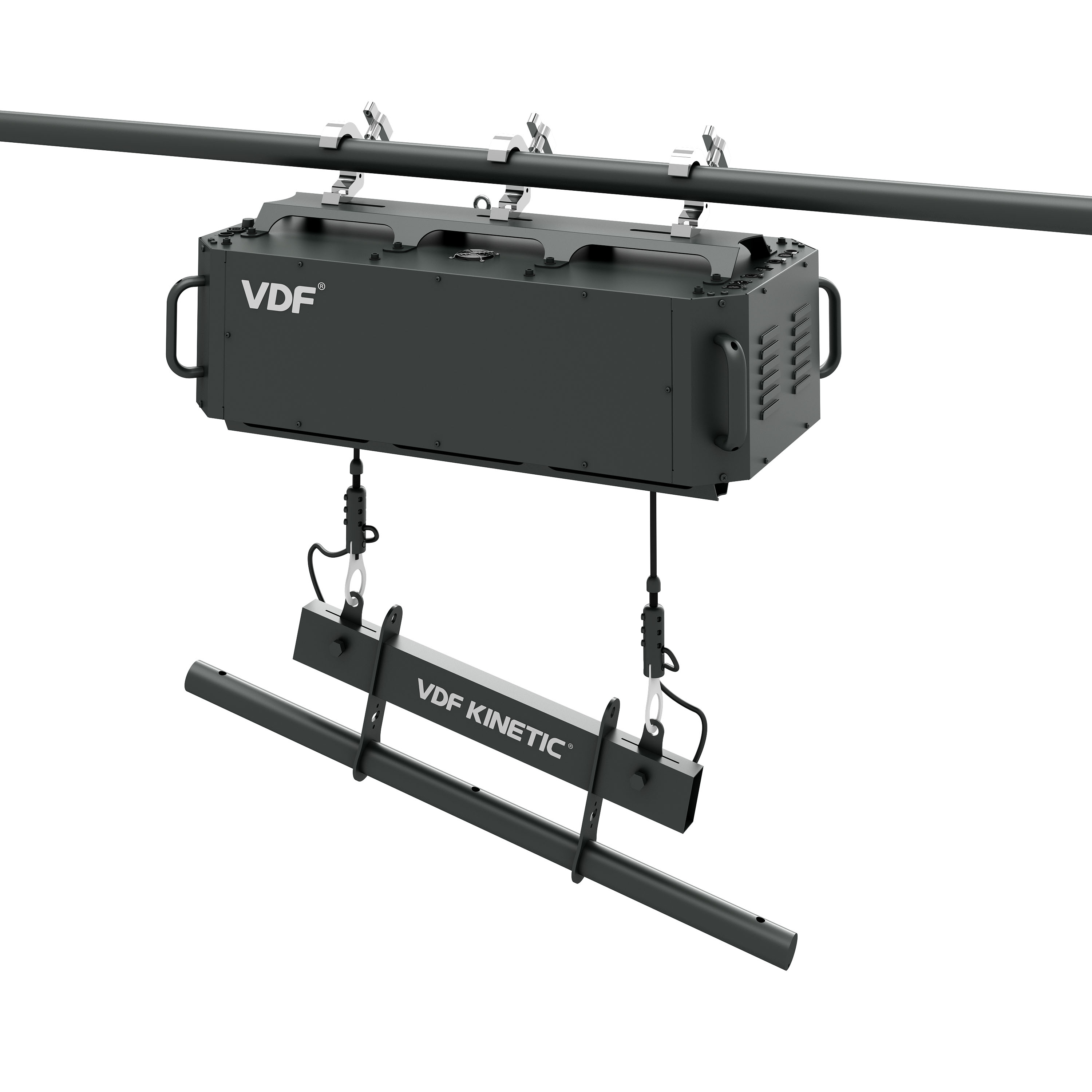

| Model Name | T5F | ||
| Lifting Height | 12M | ||
| Safety Loading Weight | 100KG | ||
| Max Speed | 40CM/S | ||
| Synchronization Error | < 6MM | ||
| Ambient Temperature | -10℃ ~ 50℃ | ||
| Lifting Cable Diameter | Ø9MM | ||
| IP Rating | IP 20 | ||
| Winch Size | 881*421*469MM ( with Clamp attached ) | ||
| Winch Weight | 57KG | ||
| Installation | Vertical Lifting | ||
| Tilt Degree | 25° | ||
| Electrical & Control | |||
| Control Mode | DMX-512 | ||
| Channel | 5CH | ||
| Fixture Pixel Control | N/A | ||
| Voltage | AC180V-240V/50-60HZ | ||
| Output Mode | 220V_4000W/RJ45+DMX | ||
| Power Consumption | 1000W Max（Excluding power thru to fixtures) | ||
| RDM | Standard | ||
| Safety | |||
| Safety Security | Dual-Physical Brake, Dual-Electronic Speed Limiter | ||
| E-Stop Interface | Customizable | ||
| Slack-Rope Detection & Protection | Standard | ||
| Interface | |||
| Connectors | 3PIN/5PIN XLR（Optional) | ||
| Power In/Out | PowerCon® True1 | ||
| Display Panel | LCD Display | ||
| External Pixel Control (for controlling pixels via different signal source) | Customizable Plug Manual Switch | ||
| Content of Package | |||
| Packaging | Carton/Flight case | ||
| T5F | 1 * UNIT | ||
| DMX Cable | 2 * 0.5㎡ * 2m * 1pcs | ||
| PowerCon® True1 Cable | 3 * 2.5㎡ * 2m * 1pcs | ||
| Balance Bar | Length 1m*1pcs | ||
| Safety Wire | 3mm * 430mm * 1pcs | ||
| Aluminum Clamp | 30mm * 110 mm * 82 mm * 3pcs |
