Network extender (Art-DMX)

Four-port network extender (FPN) specification

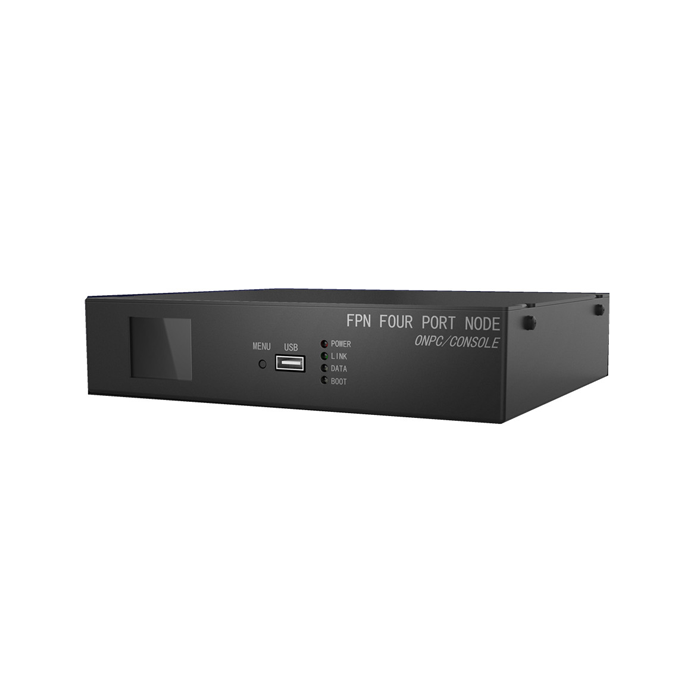

The four-port network extender FPN (Four Port Node) is a high-performance expander.

Gigabit transmission rates and support for the MA-Net protocol are important features that distinguish it from other network extenders on the market.

FPN can easily transfer the "Pandora" box of DMX data over the network, automatically convert network data into DMX data, or convert DMX data into network data.

Characteristics

Fully compatible with MA1 generation and MA2 generation series console products

Support 2048 channel parameters

Connectable to computer simulator

Gigabit transmission rate

Integrated with the lighting console, no need to do anything

The lighting console is fully remotely monitored and operated.

Support DMX data input and output

Supports all Art-Net control connections

software

Support Agreement: DMX512, Art-Net, MA-Net1, MA-Net2, sACN

Channel parameters: 2048

physical

DMX output input 4

1 Gigabit Ethernet port

1 USB 2.0 interface

2” TFT display

Power supply 90V-240V

207 x 43 x 184mm

Support 1U rack mount
