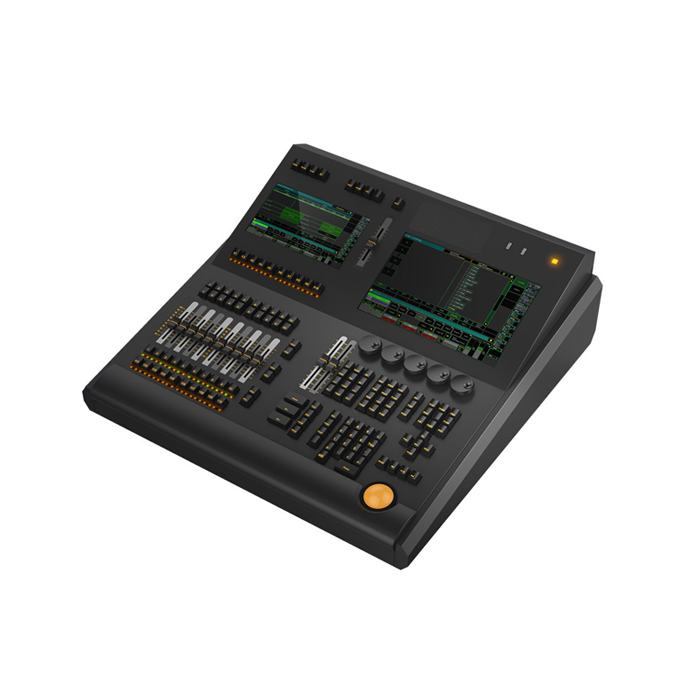

LT-Z0 Portable dedicated console

hardware:

 5 DMX output inputs, up to 65536 channel parameters

 1 wireless DMX output (optional)

 Built-in 1 12.1-inch touch screen + 9-inch touch screen

 Two external touch screens can be connected

 10 high precision electric push rods (60mm)

 2 AB field electric push rods (100mm)

 1 master electric push rod

 5 wear-resistant encoders (with Push function)

 1 highly sensitive trackball

 1 Digabit Ethernet port

 4 USB 2.0 ports

 Independent orange backlight button

 MIDI input and output interface

 LTC/SMPTE time code

 Support for extended putter flank

 1 LED gooseneck socket

 1 SSD

 Intel i3 CPU

 4GB of memory

 Geforce graphics card 2

 AC power supply: 90-240V, 50/60Hz

The product contains:

 1 power cord

 Gooseneck lamp 2

 A description of the operation

 One air box

Software:

 Support both Chinese and English

 Linux operating system

 Support DMX512, Artnet, ACN protocol

 The system can be installed via USB flash drive

 Program data can be saved on hard disk or USB flash drive

 Support for multiple online backups

 Support for handheld remote control

 Support stage 3D effect simulation, real-time live simulation

 The system can be installed via USB flash drive

 Program data can be saved on hard disk or USB flash drive

 Support DMX512, Artnet, ACN protocol

 Support for RDM management

 Support Wysiwyg connection

 Mass light library support

 Support for LTP and HTP

 Support MIDI time code and internal time code

 Powerful layout management

 Support for multi-user operations and set individual user permissions

 Colors, patterns, beams, positions, etc., each type can hold 10,000

 Support 10,000 groups and support 10,000 effects

 Supports 10,000 programs, each program can contain 9999 scenes

physical:

 Size: 60cm*60cm*21cm

 Net weight: 25kg

Instructions:

 Please consult the operating manual
