Jordan Chan's 'BIG MAN·One Person' 30th Anniversary Tour, VDF's World's First Dual-Motor Micro-Crane to Support the Tour

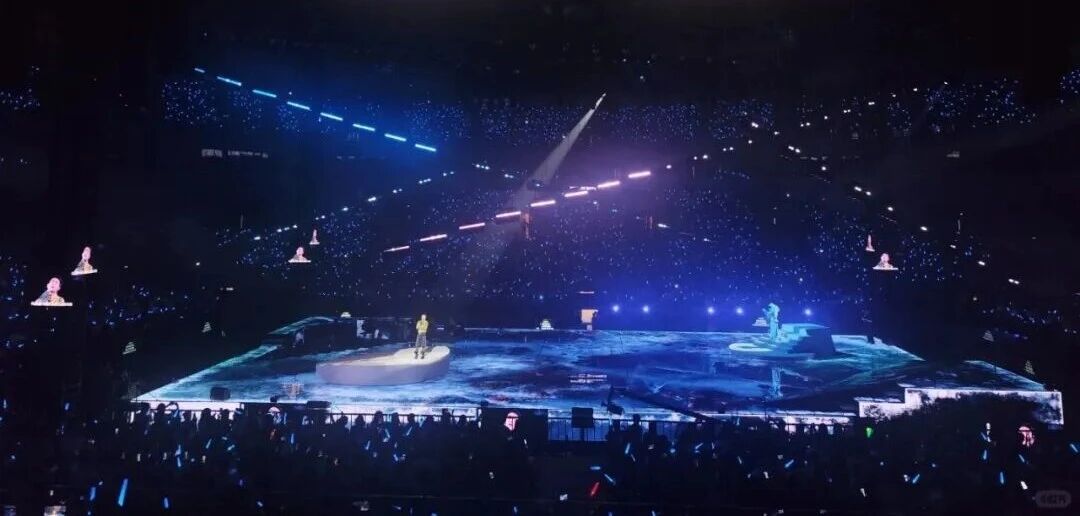

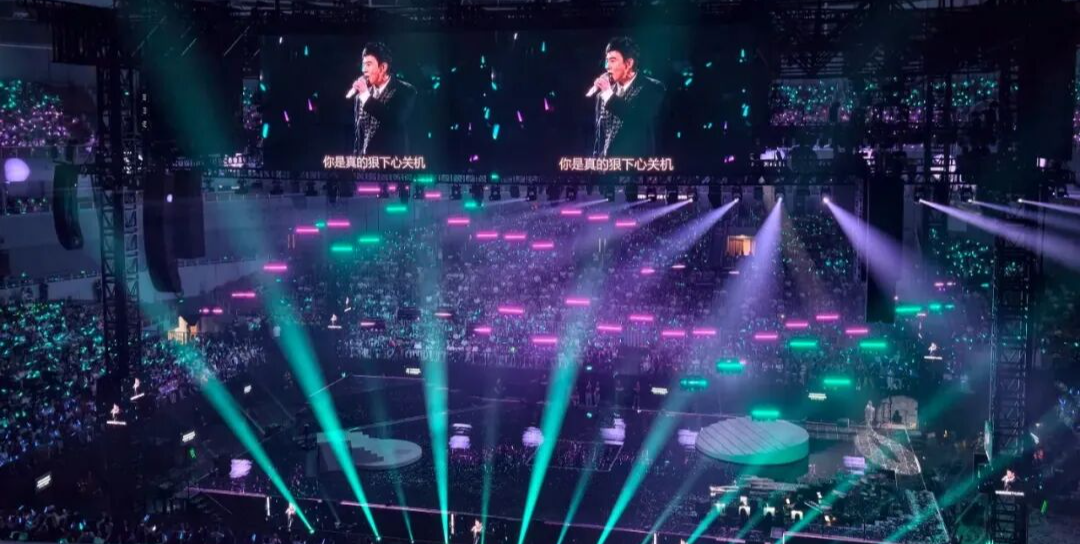

Jordan Chan's 30th anniversary 'BIG MAN·One' tour concert in Jinan was successfully completed on June 27. He sang many golden songs to pay tribute to the youth of thousands of fans at the scene. This time, a newly designed four-sided stage was used, and the stage design and lighting equipment were all upgraded to version 2.0.

The VDF KINETIC dual-motor micro crane VDF_T5F made its debut at a large-scale concert with tens of thousands of people, as well as the 120KG single-motor micro-hoist VDF_T5L and the 60KG-class single-motor micro-hoist VDF_T30TC, which were equipped with a new combination of creative lighting and props for the tour.

The stage lighting design is created by the EYE Show Studio team

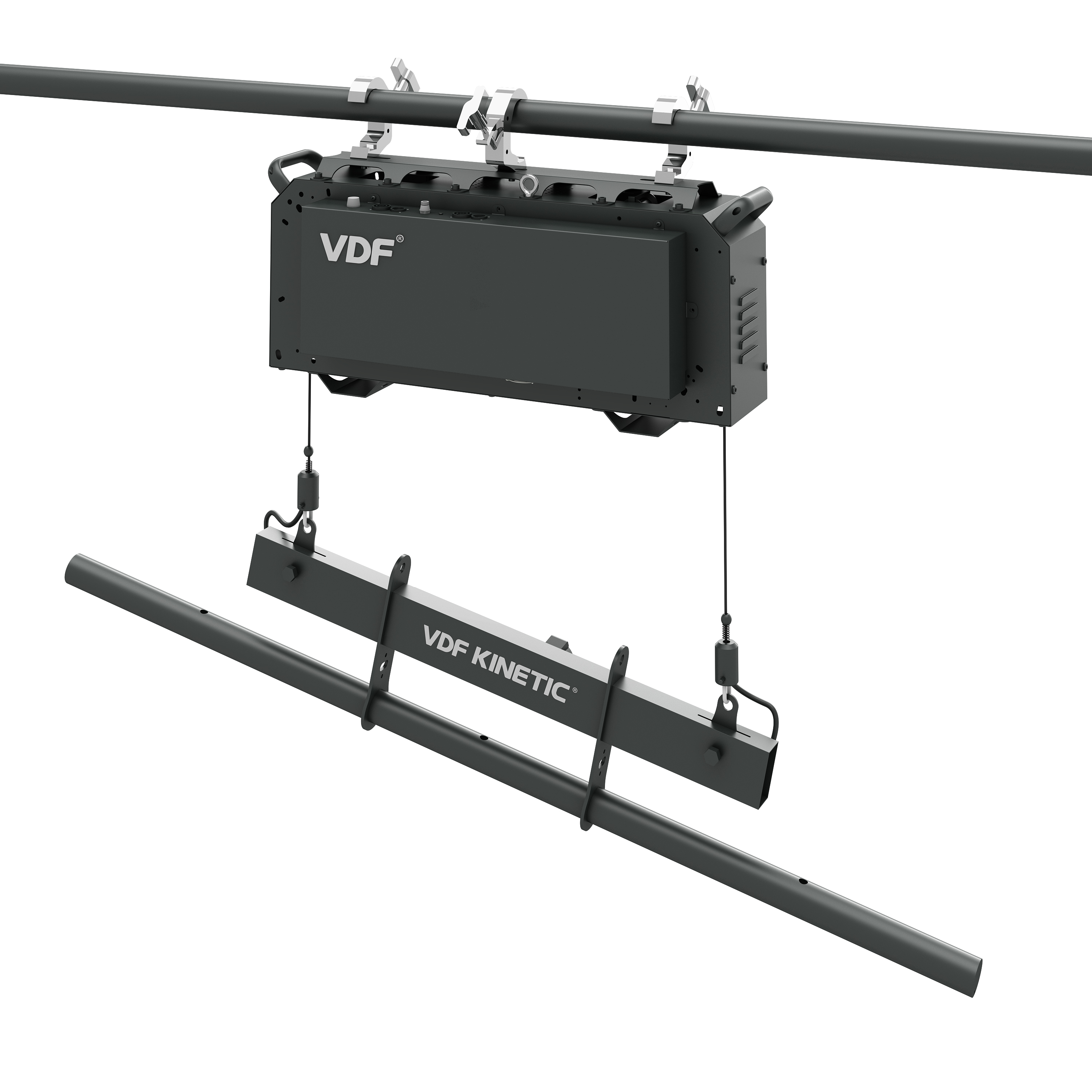

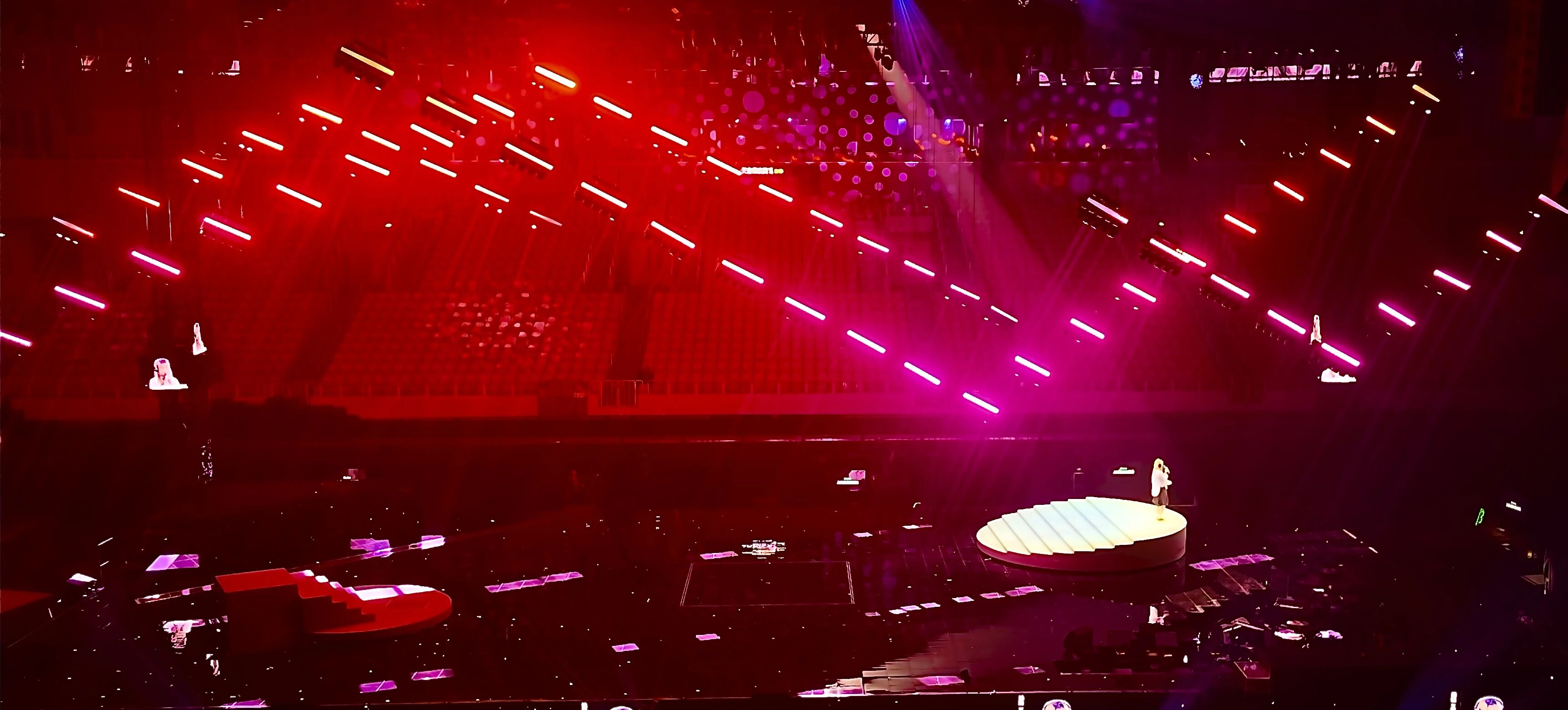

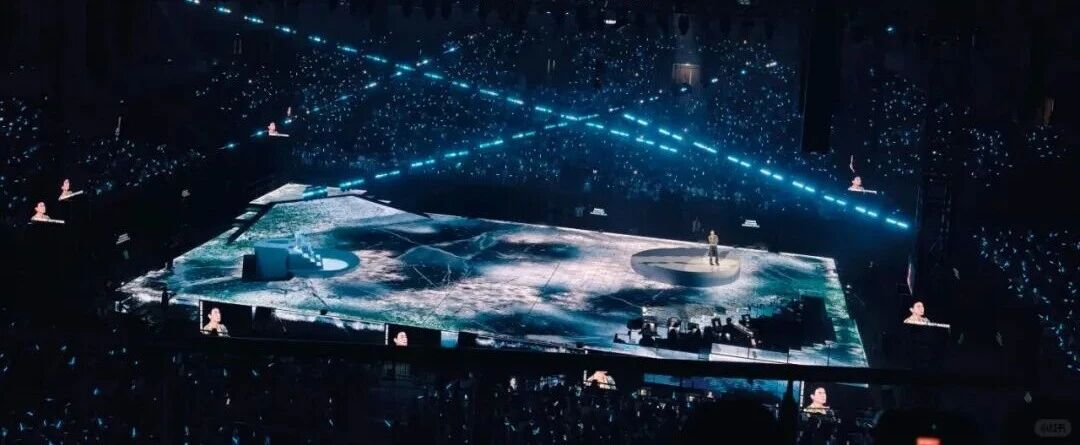

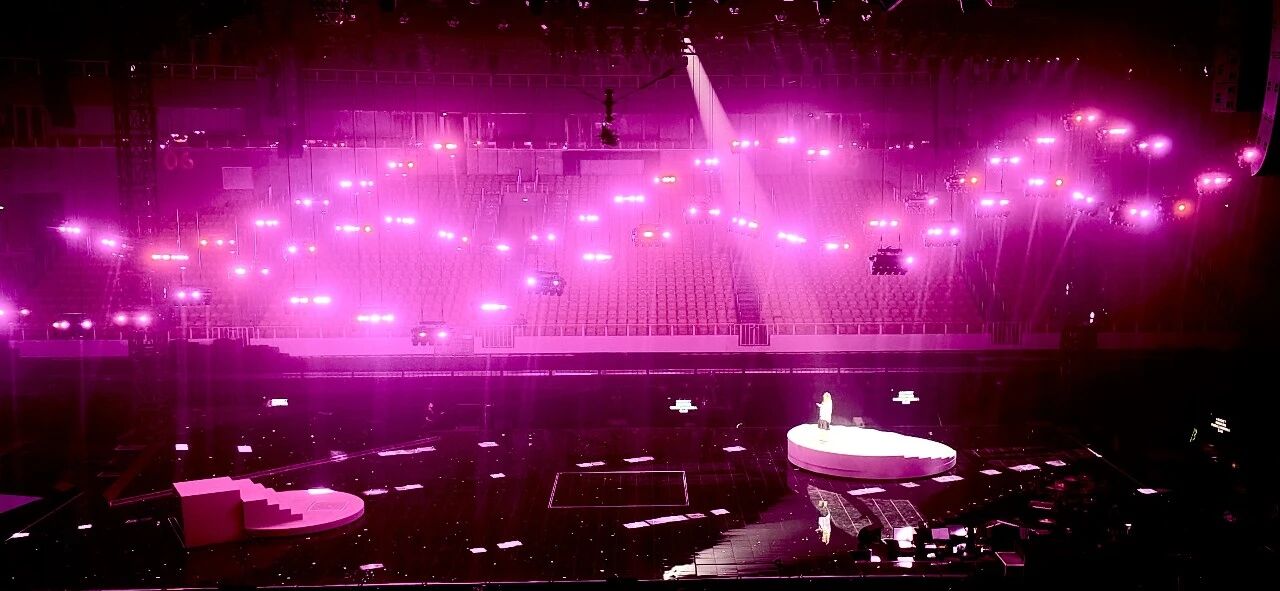

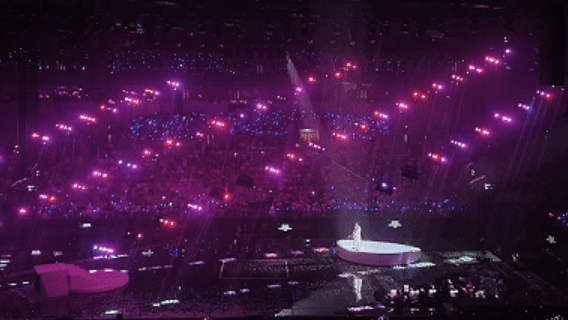

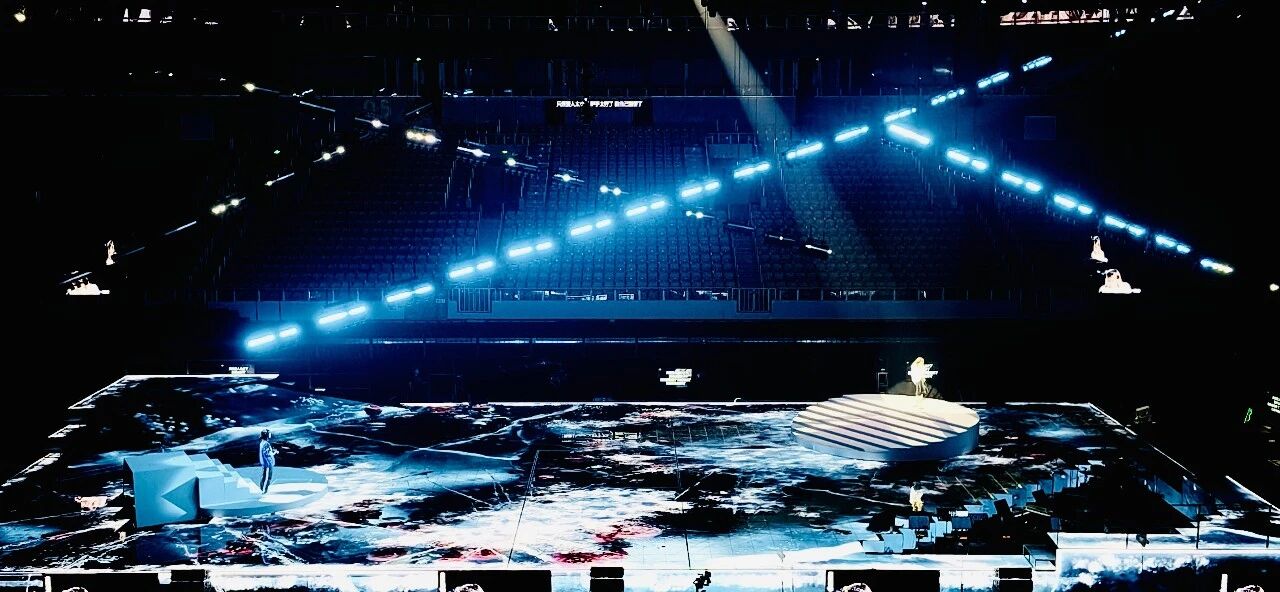

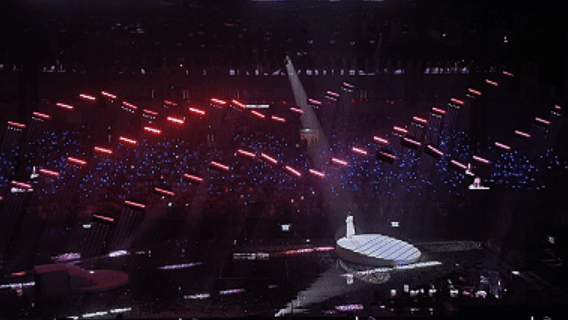

One of the biggest highlights of this lighting design is that VDF_T5F uses dual motors to drive independently, and the dual ropes can adjust the height with a single rope to tilt left and right, with a maximum tilt angle of 40°. Lighting programming teachers can use this feature to create a richly layered and well-proportioned sloped light array. Along with the music and drumbeats, the light array cross-chased and shuttled, and Kinetic Lighting's dynamic lighting brought a new visual experience to the audience.

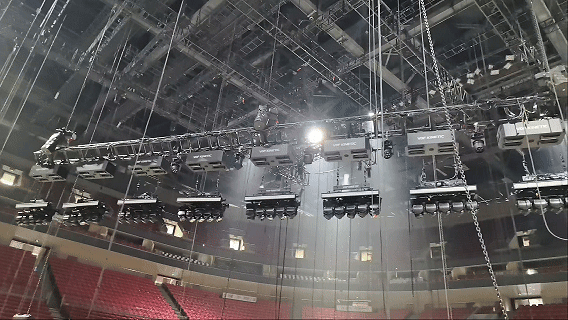

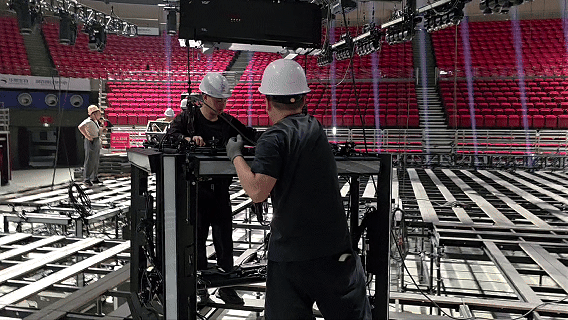

There are 66 T5F dual-motor micro-hoists installed on site. As the world's first dual-motor Kinetic Winch micro-hoist, the VDF_T5F terminal has both DMX512 and RJ45 dual signal parallel transmission. The terminal has a 4000W high-power stable power supply, running smoothly and without delay. The lighting fixtures are ACME Strobe 3IP and TB 5IP. They come standard with VDF original balanced light poles and adopt double-sided installation methods, which fully meet the multi-angle viewing needs of four-sided stage performances.

The detailed parameters of T5F are as follows:

Load 100KG, lifting range 1200CM

The fastest speed is 40CM/S

Control mode DMX-512 Total number of channels 5CH

Control interface 3-pin/5-pin XLR-input/output

Dual motor independent drive

Output mode 220V_4000W/RJ45+DMX

Total power 1200W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

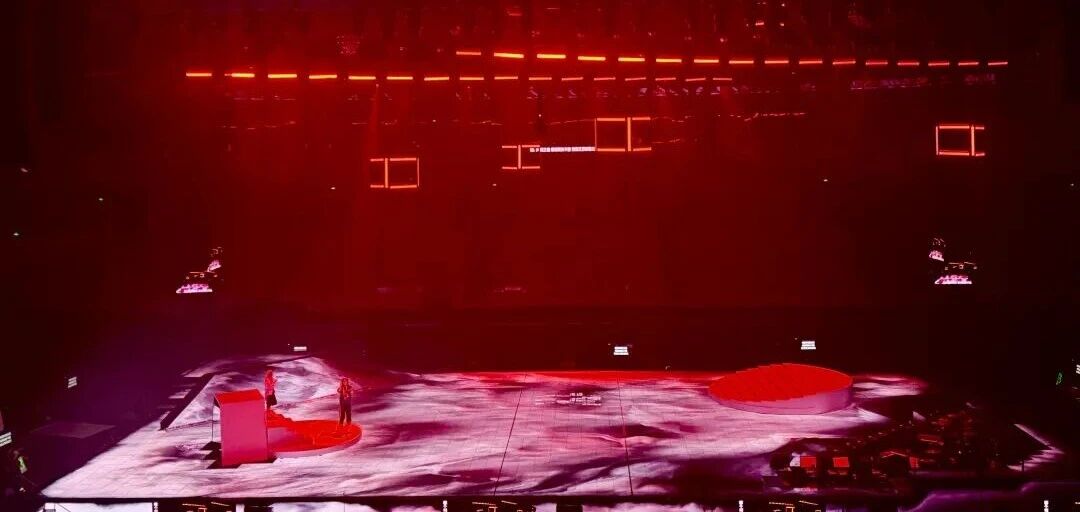

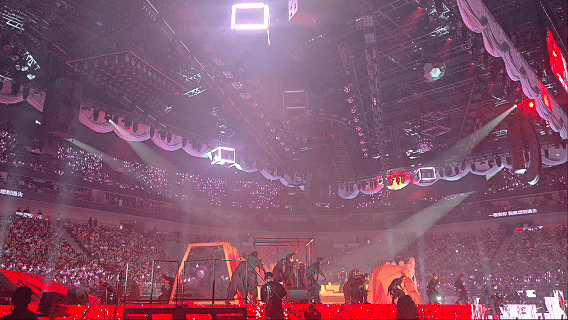

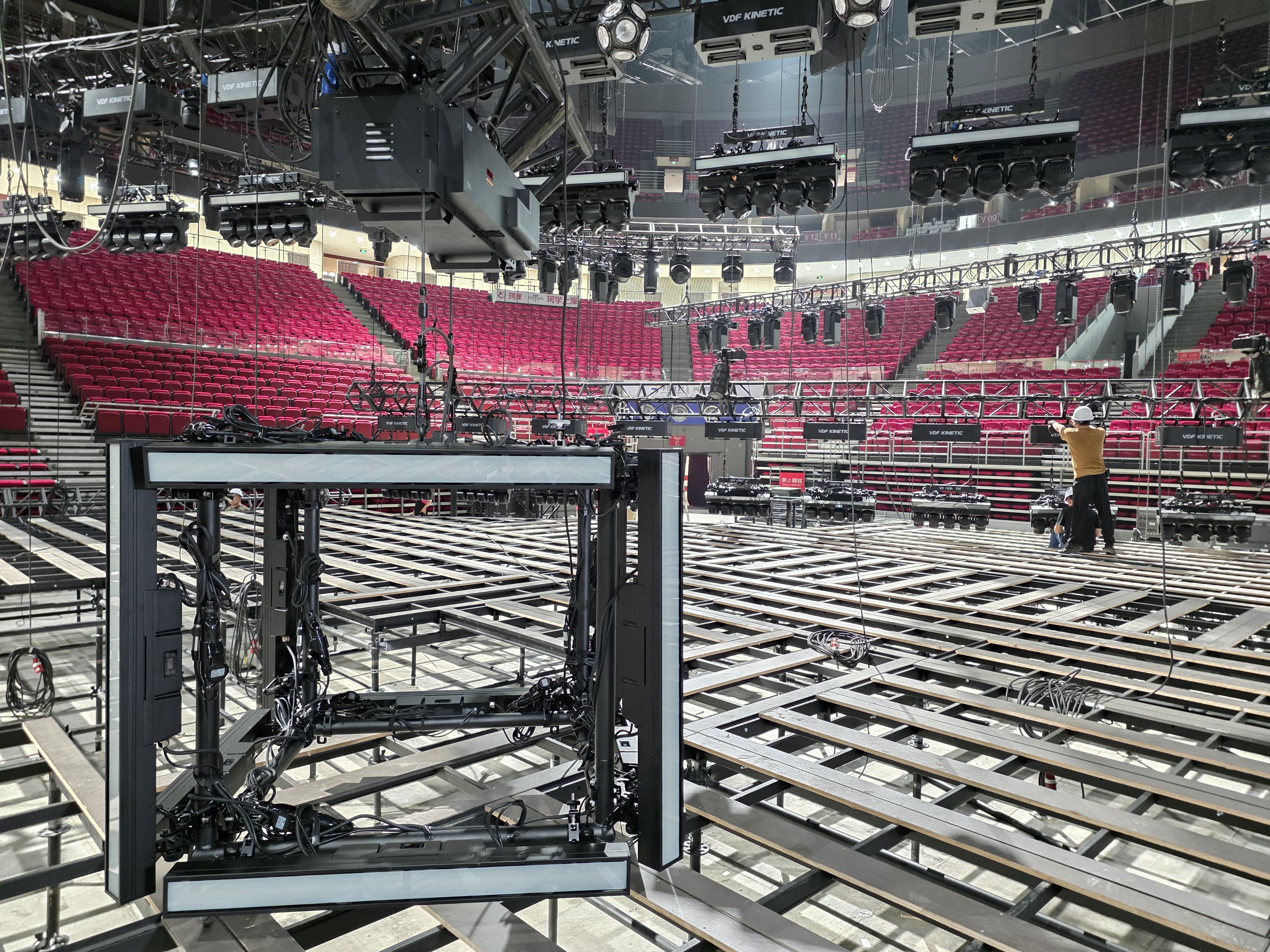

Six 120KG micro-hanging VDF_T5L units are equipped with square integrated light boxes composed of 12 ACME Strobe 3IP strobe lights. Thanks to the diagonal outlet design of VDF_T5L, the square integrated light boxes are stable and jitter-free during the lifting process. The total weight of the entire set of lights is about 100 kilograms. The VDF_T5L has a rated load of 120KG and a load redundancy of 20KG. It is very suitable for hanging multiple lighting fixtures.

The detailed parameters of T5L are as follows:

Load 120KG Lifting range 1200CM

The fastest speed is 40CM/S

Control mode DMX-512 Total number of channels 5CH

Control interface 3-pin/5-pin XLR-input/output

Dual motor independent drive

Output mode 220V_4000W/RJ45+DMX

Total power 1000W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

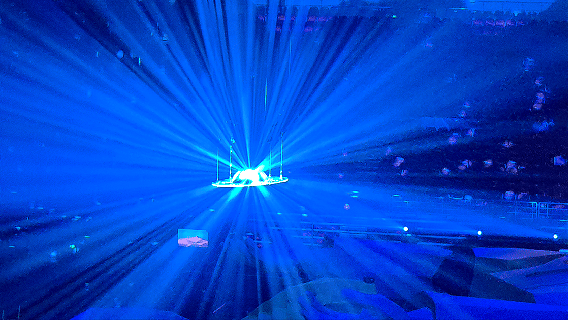

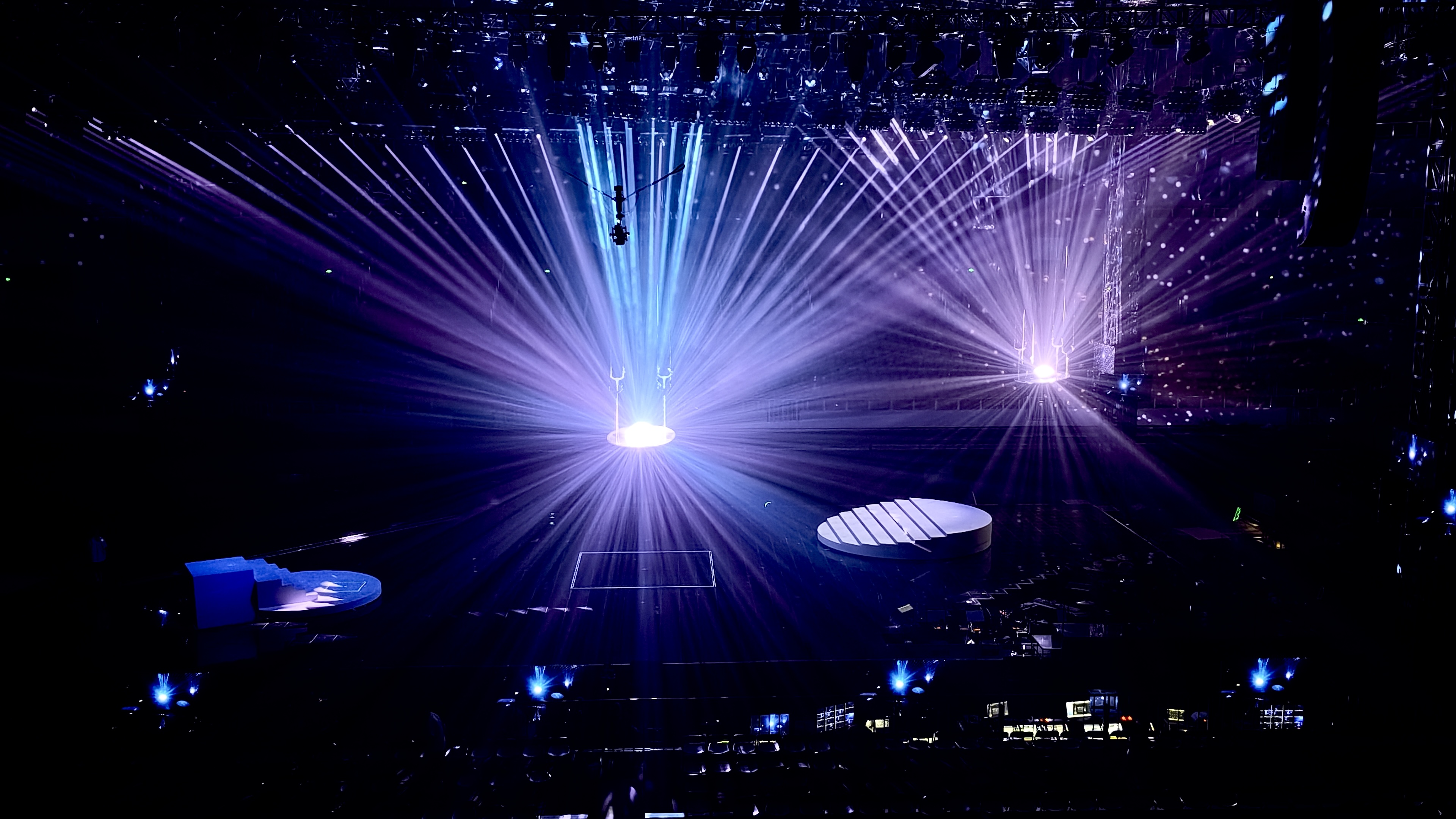

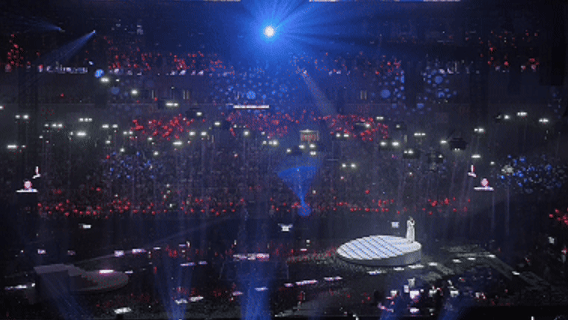

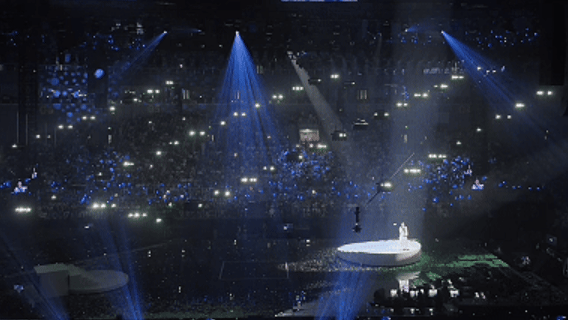

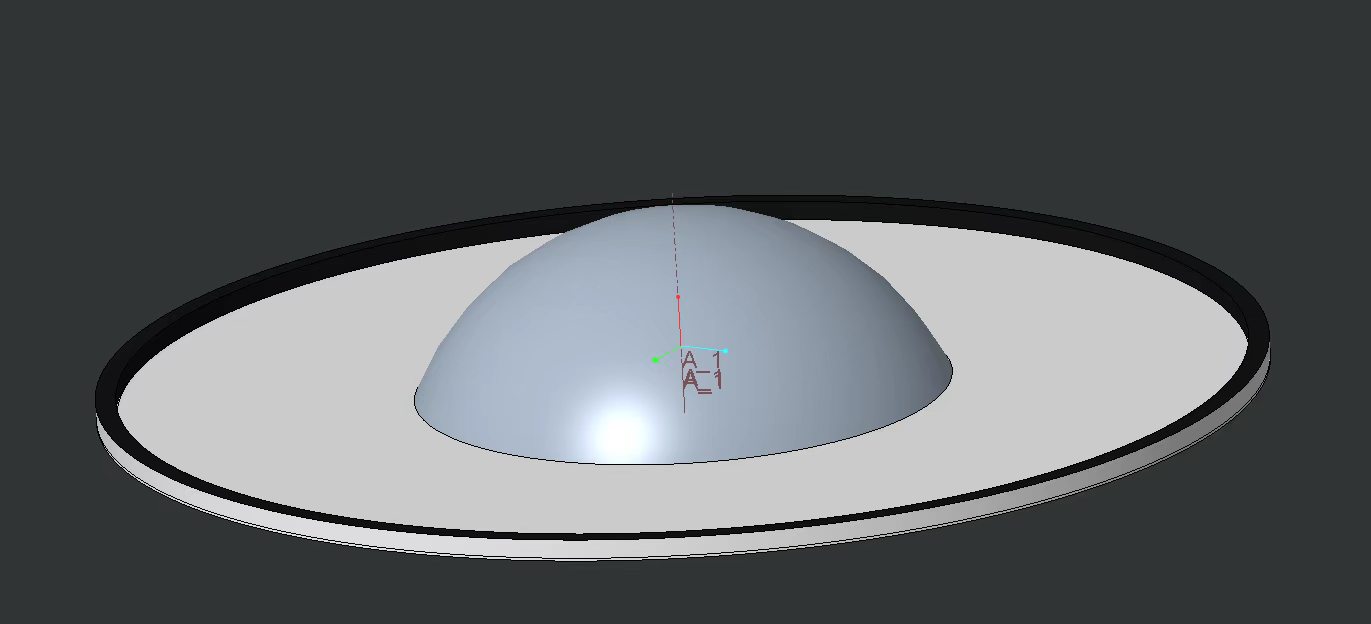

When Brother Chun sang the song 'Exclusive Memory', VDF_T30TC raised two 'flying saucers'. During the lifting process, the entire stage was wrapped in quiet blue light and shadow, forming a gentle blue sea. The audience was immersed in this flowing and gentle exclusive romance.

The detailed parameters of T30TC are as follows:

Load 60KG, lifting range 1500CM

The fastest speed is 40CM/S

Control method DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 850W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar

Using light as shape and movement as rhyme, witness every musical love with ultimate stage vision. The exciting tour is still going on, so please stay tuned for subsequent shows and enjoy the next feast of light and shadow intertwined with the Hong Kong Philharmonic.

Disclaimer: Part of the above material comes from the Internet
