| General | |||

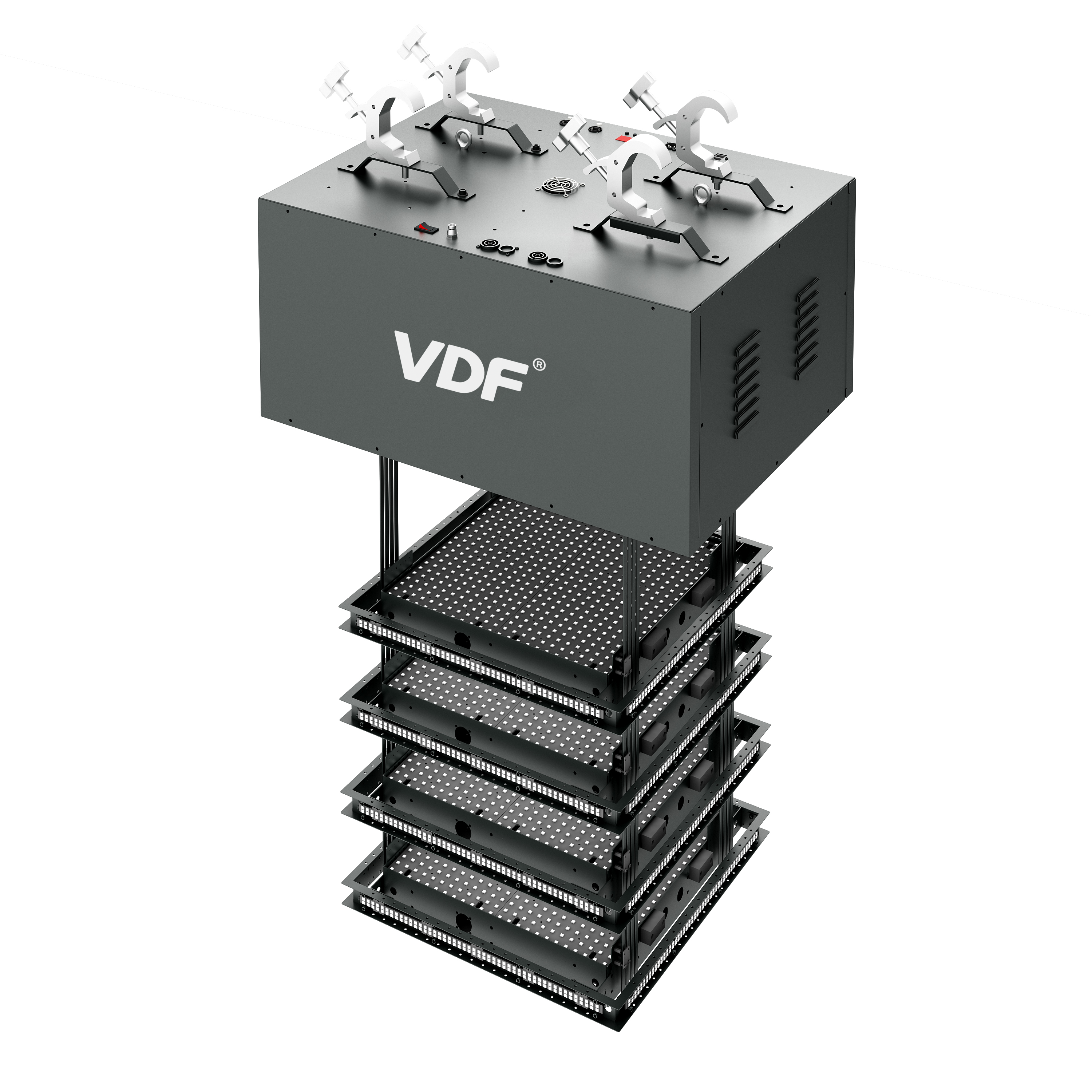

| Model Name | E5 | ||
| Lifting Height | 4M | ||
| Safety Loading Weight | 50KG | ||
| Max Speed | 100CM/S | ||
| Synchronization Error | < 10MM | ||
| Ambient Temperature | -10℃ ~ 50℃ | ||
| Lifting Cable Diameter | Ø8*3MM | ||
| IP Rating | IP 20 | ||
| Winch Size | 819*544*548 MM ( with Clamp attached ) | ||
| Winch Weight | 100KGKG/Set | ||
| Installation | Vertical Lifting | ||
| Tilt Degree | N/A | ||
| Pixel Board | |||
| Color | RGBW | ||
| Light Panel Layers | 4 layers | ||
| Quantity Of Pixel | 256pcs*4 layers | ||
| Light Panel Size | 492*492*104MM*4 layers | ||
| Light Panel Total Power | 400W*4 layers | ||
| Electrical & Control | |||
| Control Mode | DMX-512 | ||
| Channel | 4CH | ||
| Fixture Pixel Control | N/A | ||
| Voltage | AC90V-240V/50-60HZ | ||
| Output Mode | 220V_1700W | ||
| Power Consumption | 1300W Max（Excluding power thru to fixtures) | ||
| RDM | Standard | ||
| Safety | |||
| Safety Security | Physical Brake, Electronic Speed Limiter | ||
| E-Stop Interface | Customizable | ||
| Interface | |||
| Connectors | 3PIN/5PIN XLR（Optional) | ||
| Power In/Out | PowerCon® True1 | ||
| Display Panel | 4 * Digit 7-Segment Display | ||
| External Pixel Control (for controlling pixels via different signal source) | RJ45 control Pixel board | ||
| Content of Package | |||
| Packaging | Carton/Flight case/Wooden box | ||
| E5 | 1 * UNIT | ||
| DMX Cable | 2 * 0.5㎡ * 2m * 1pcs | ||
| PowerCon® True1 Cable | 3*1.25㎡*2M*1pc、20A female power connector*1pcs | ||
| Safety Wire | 3mm * 430mm * 1pcs | ||
| Aluminum Clamp | 30mm * 110 mm * 82 mm * 4pcs |
