An array of suspended lights creates a new sound of music｜VDF Kinetic micro-suspended lights shine on the stage of 'You Song Season 2'

As a high-quality music variety show focusing on Chinese original music, 'Youge Season 2' continues to dominate the topic with its persistence in music authenticity and innovative stage expression. The program brings together powerful singers and cutting-edge creators, using diverse genres to collide with the infinite possibilities of music. It not only becomes an important place for the audience to listen to good songs, but also presents a very avant-garde stage, refreshing the public's understanding of the visual expression of music variety shows.

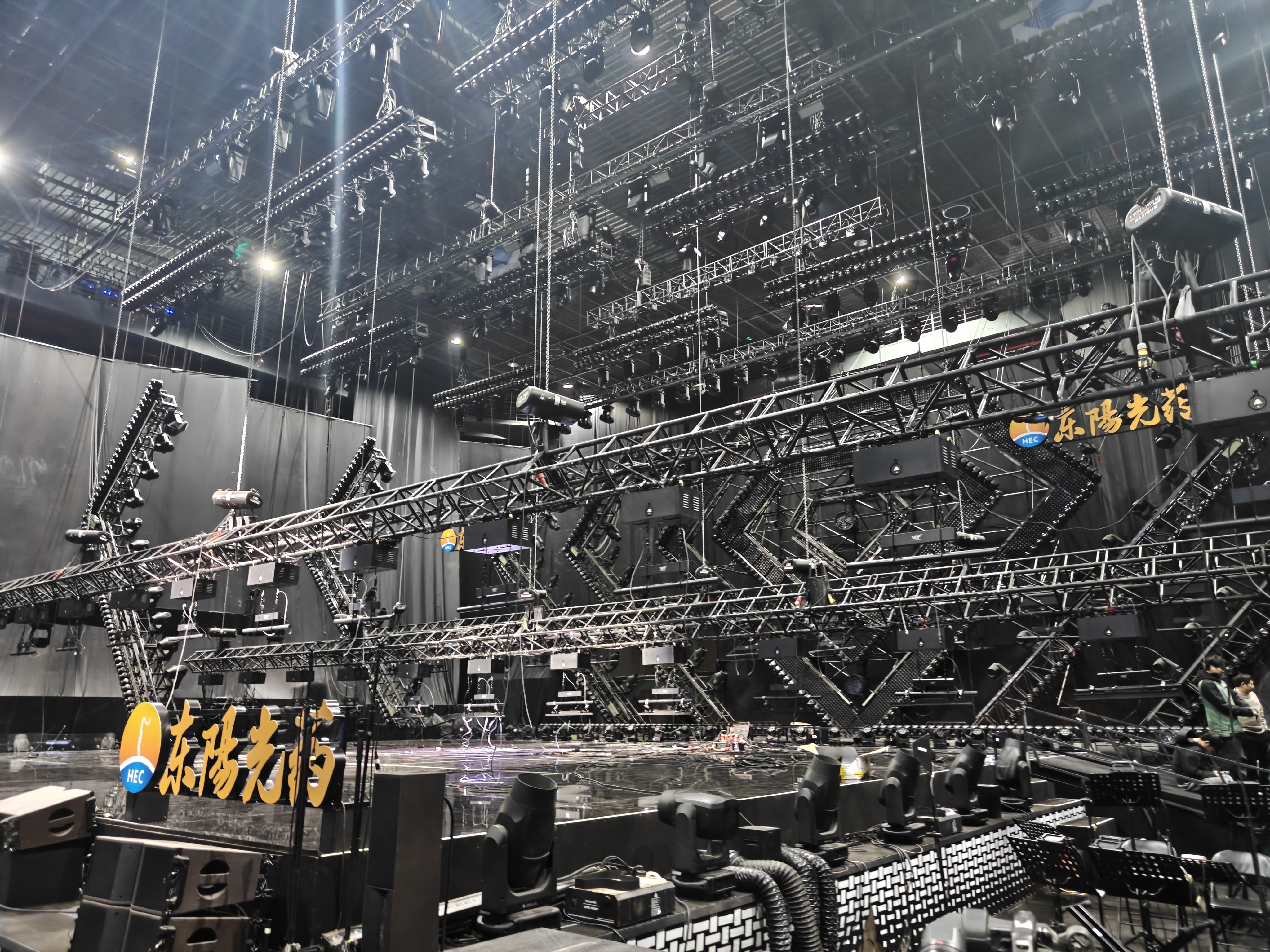

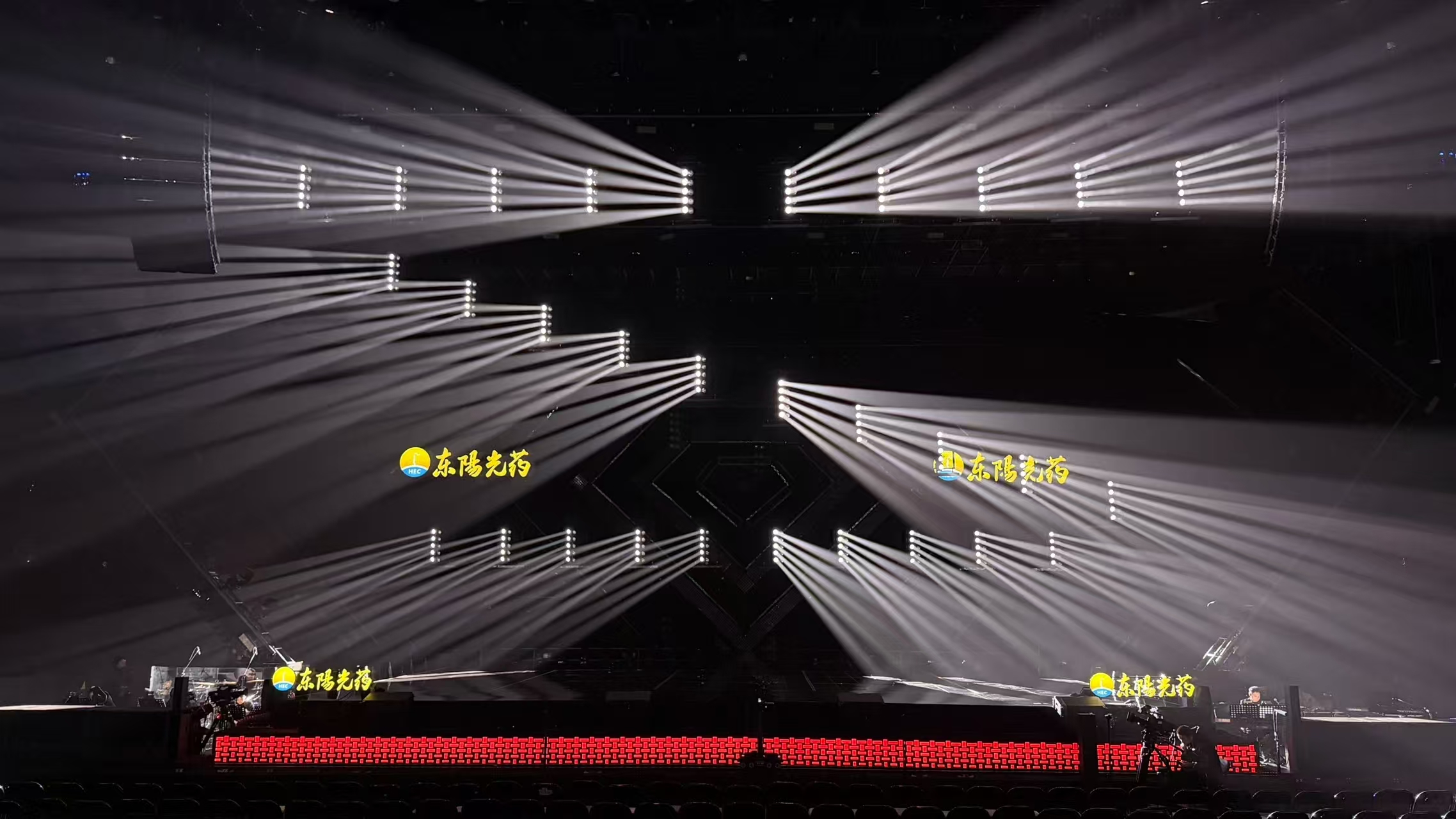

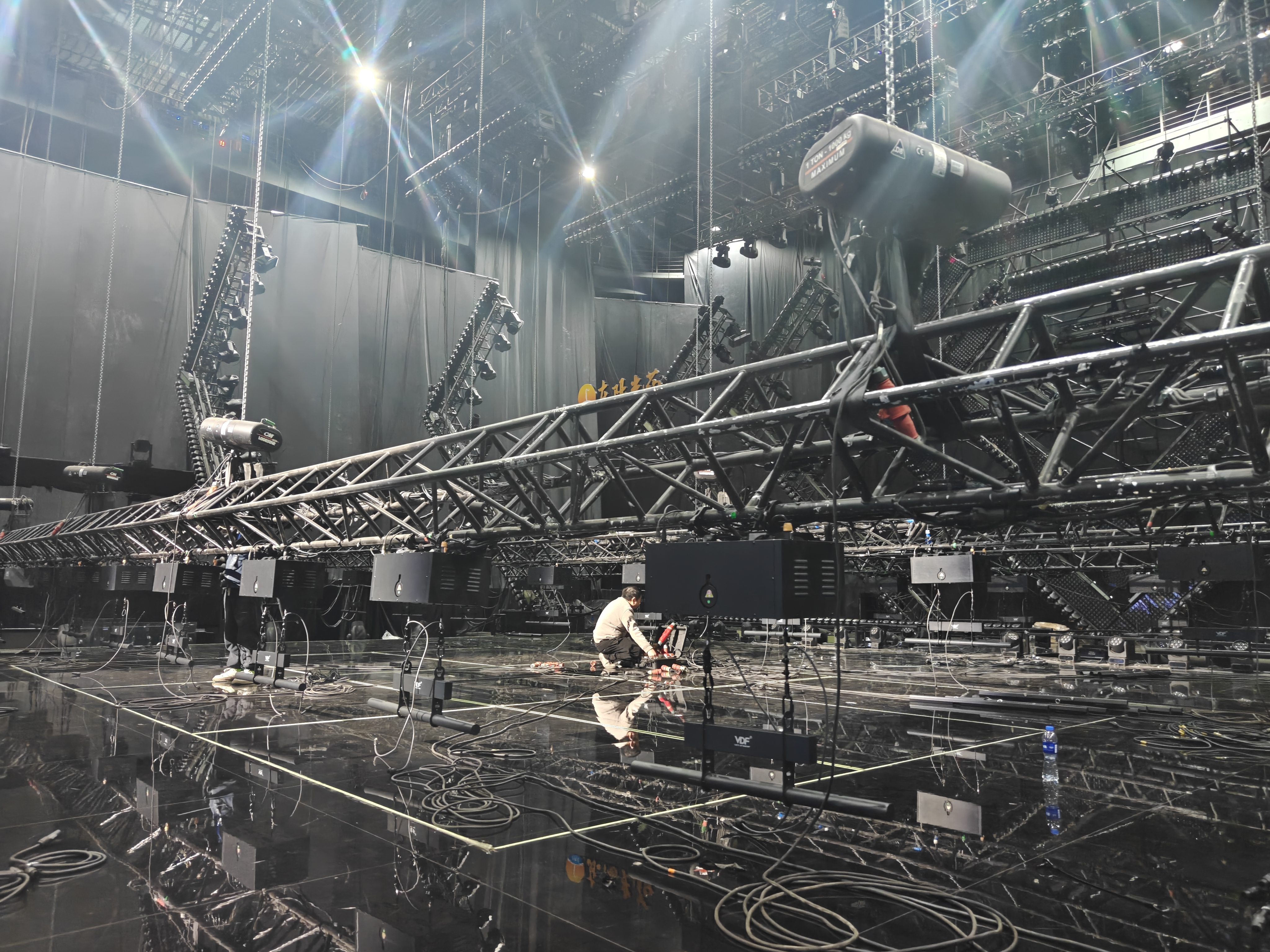

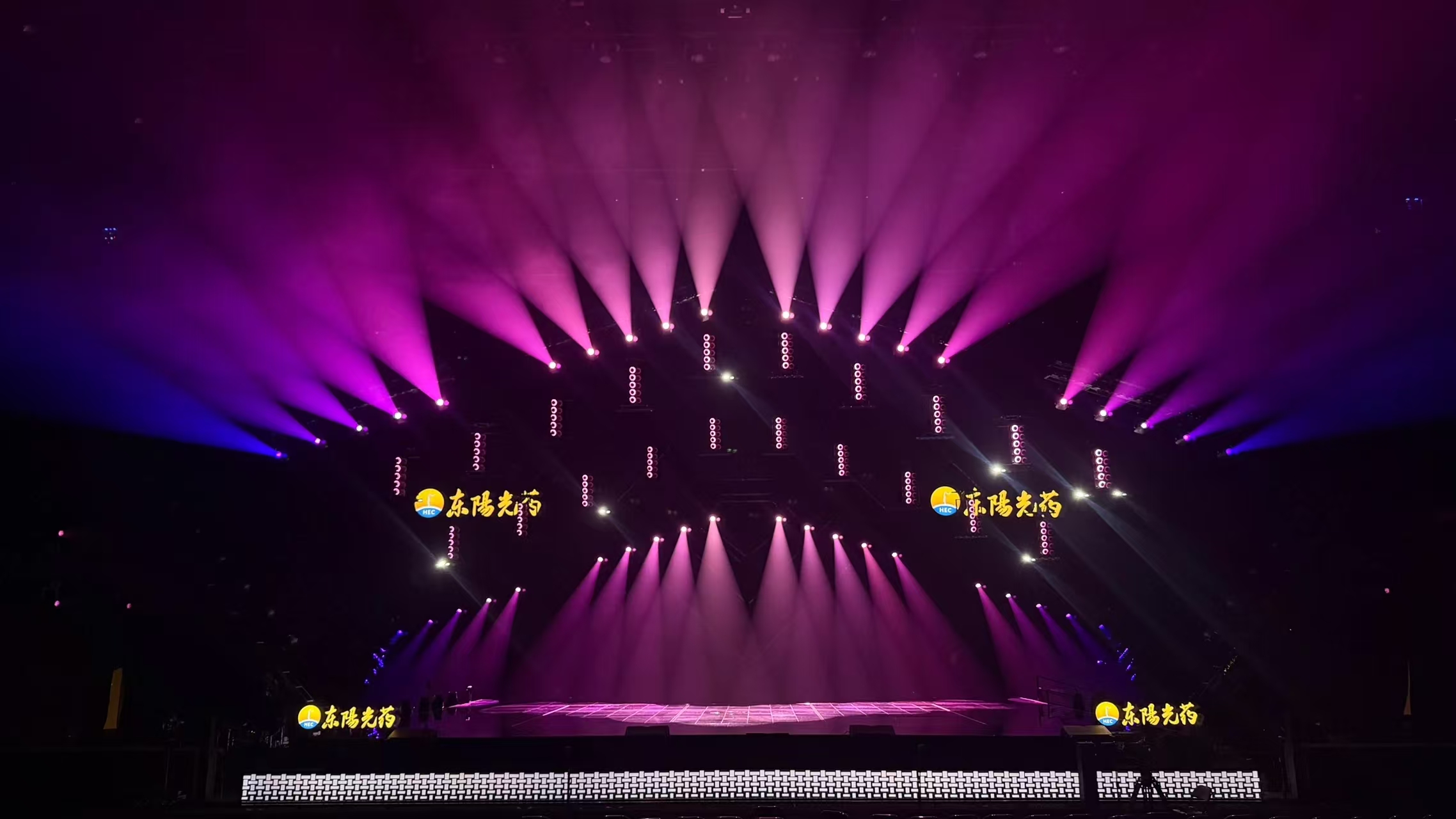

The stage lighting design was carried out by Tian Weijun and Lu Xiaowei from the EYE Show Studio team. The stage background is based on geometric trusses and extends into a staggered dynamic matrix structure. The suspended CNC light array on the top echoes the symmetrically distributed beam light array in the middle, making the light and shadow narrative more layered and appealing . The color flow of the linear light array and the sharp cutting of the beam lights allow each melody to find a corresponding visual language, conveying the mood of the song with layers of light and shadow.

In this complex stage system, VDF Kinetic micro-suspension gives the stage performance space a stronger sense of narrative and creative possibilities. As an important part of the dynamic lifting system, it can drive the CNC light array to achieve smooth lifting, displacement and combination changes. It can also freeze the lamps into a stable shape in the air, bringing more diverse visual expressions to the stage design.

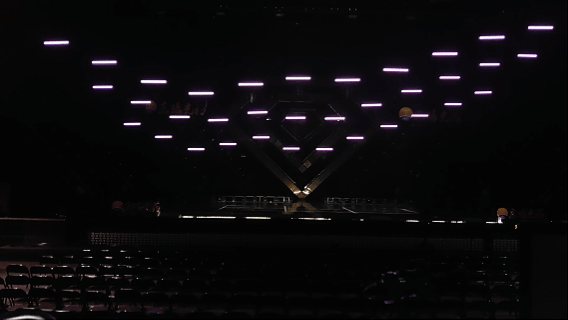

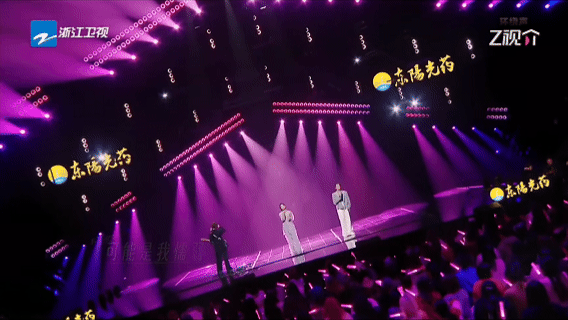

Among them, the lighting matrix mounted on the VDF Kinetic micro-suspension 50KG class T30TC is the visual highlight of the stage: matrix lights, 7x7 golden eyes, 21*21 (RGBW) lamps, and equipment such as Acme strobe bar 3IP, tornado TB 5IP, etc., driven by the VDF Kinetic micro-suspension, form a dynamic light and shadow matrix with rich layers. The scattered and suspended light array changes position with the ups and downs of the melody, interweaving with beams and strobe effects, allowing the dynamic art installation to deeply match the rhythm of the music, further strengthening the narrative tension of the dynamic stage lighting, making the stage no longer just a carrier of music, but also an emotional carrier that coexists with the singing.

The load-bearing range of the VDF-Kinetic micro-crane covers 5KG to 100KG, and the lifting stroke can reach up to 30 meters. Among them, the 50KG class is the star product of Gaoyi Workshop. There will be more than 30 implementation cases in 2025. It is an excellent creative solution for hanging lightweight props in concerts, music variety shows, exhibitions and other scenes.

VDF Kinetic micro-hanging T30TC can stably carry heavy-duty lamps and LED displays within 50 kg. The equipment adopts a double hanging point and double wire design, transmitting 220V power in one way and DMX/RJ45 signal in the other way. The power supply and signal are independent of each other, with stable operation and strong anti-interference ability. Through the standard DMX512 control protocol, the VDF Kinetic micro-suspension can work seamlessly with the lighting console, supporting time code triggering and music synchronization control, so that lighting changes and stage lifting movements can cooperate tacitly, bringing more complete dynamic expression to the stage presentation.

T30TC

Load 50KG, lifting range 1500CM

The fastest speed is 40CM/S

Control mode DMX-512 Total number of channels 4CH

Control interface 3-pin/5-pin XLR-input/output

Adaptable voltage AC90V-240V/50-60HZ

Output mode 220V_1300W/RJ45/DMX

Total power 850W

E-STOP Emergency Brake/Loose Rope Alarm

LINK(Teamwork)/standard balance bar
